SKU: UCPX.05-14

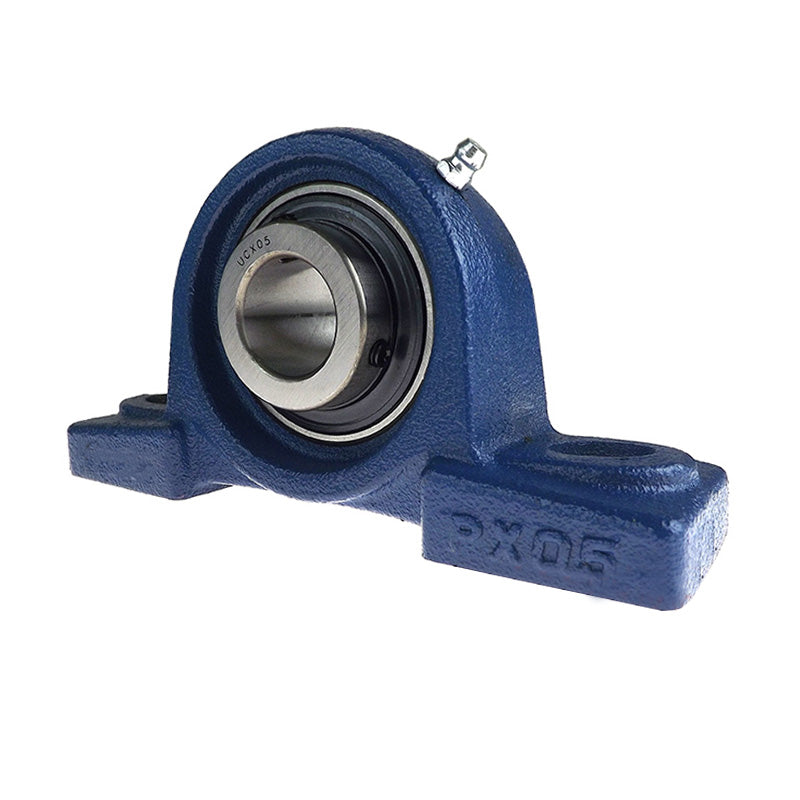

UCPX05-14 Imperial Two Bolt Cast Iron Pillow / Plummer Block Housing with 7/8 inch Bore Insert
UCPX05-14 Imperial Two Bolt Cast Iron Pillow / Plummer Block Housing with 7/8 inch Bore Insert
Regular price
$25.13
ex VAT
Regular price
Sale price
$25.13
ex VAT
In stock
Price Break
10+
$22.37
19+
$21.11
29+
$20.86
39+
$20.61
49+
$20.36
74+
$20.10
99+
$18.85
199+
$18.60
249+
$18.34
499+
$18.09
999+
$17.59
Couldn't load pickup availability
Description
Description
|
UCPX or MP Series Plummer / Pillow Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 22.23mm = 0.875 (7/8) inch
- Style:
- UCPX
- Bolt Hole Centres:
- 119mm
Technical
Technical
| d | 7/8 inch |
|---|---|
| h | 44.4mm |
| a | 159mm |
| e | 119mm |
| b | 51mm |
| s2 | 25mm |
| s1 | 17mm |
| g | 18mm |
| w | 85mm |
| B1 | 38.1mm |
| n | 15.9mm |
| Bolt Size | M14 |
| Weight | 1.5 kg |
| Dynamic load | 1520 kgf |
| Static load | 1020 kgf |
