SKU: UCPW207

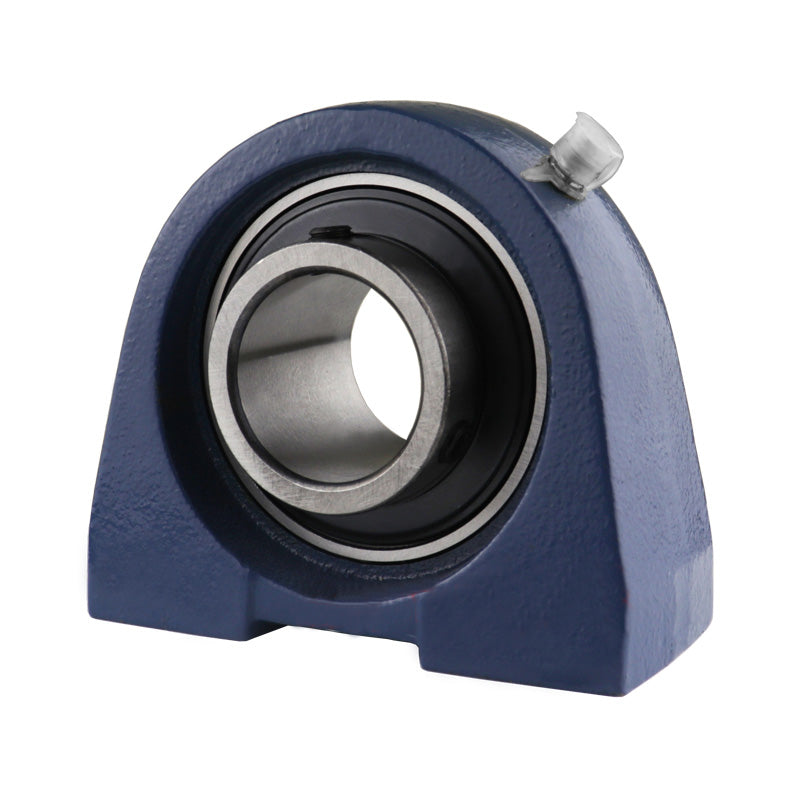

UCPW207 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 35mm Insert
UCPW207 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 35mm Insert
Regular price
$36.54
ex VAT
Regular price
Sale price
$36.54
ex VAT
Low stock
Price Break
10+
$32.52
19+
$30.69
29+
$30.33
39+
$29.96
49+
$29.60
74+
$29.23
99+
$27.41
199+
$27.04
249+
$26.67
499+
$26.31
999+
$25.58
Couldn't load pickup availability
Description
Description
UCPW200 Series Normal Duty 2 Bolt Pillow Block Housings with Setscrews: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has a wide inner ring and 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 35mm
- Style:
- UCPW
- Bolt Hole Centres:
- 127mm
Technical
Technical
| d | 35mm |
|---|---|
| h | 95mm |
| a | 166mm |
| e | 127mm |
| b | 60mm |
| s1 | 17mm |
| s2 | 21mm |
| g | 18mm |
| w | 140mm |
| B | 42.9mm |
| n | 17.5mm |
| Bolt size | M14 |
| Bearing no | UC207 |
| Housing no | PW207 |
| Weight | 1.83 kg |
