SKU: UCPH206-18

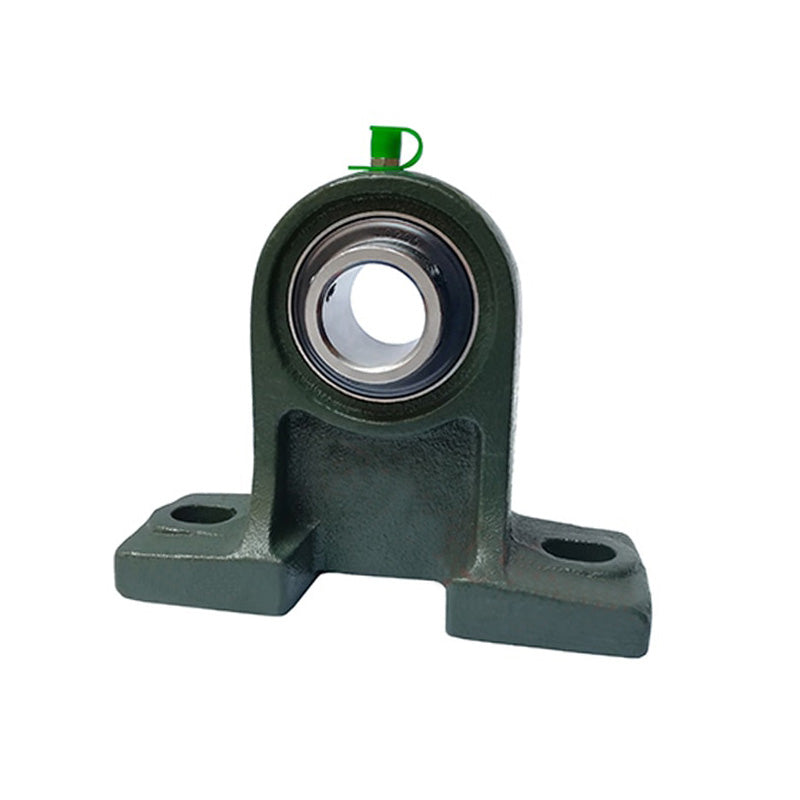

UCPH206-18 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-1/8 inch Insert
UCPH206-18 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-1/8 inch Insert
Regular price
$35.07
ex VAT
Regular price
Sale price
$35.07
ex VAT
In stock
Price Break
10+
$31.21
19+
$29.46
29+
$29.11
39+
$28.76
49+
$28.41
74+
$28.06
99+
$26.30
199+
$25.95
249+
$25.60
499+
$25.25
999+
$24.55
Couldn't load pickup availability
Description
Description
UCPH200 Series Normal Duty 2 Bolt Pillow Block Housings with Setscrews: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has a wide inner ring and 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 28.58mm = 1.125 (1-1/8) inch
- Style:
- UCPH
- Bolt Hole Centres:
- 120.65mm = 4.75 (4-3/4) inch
Technical
Technical
| d | 1-1/8 inch |
|---|---|
| h | 3-35/64 inch |
| a | 6-11/32 inch |
| e | 4-3/4 inch |
| b | 1-31/32 inch |
| s1 | 43/64 inch |
| s2 | 53/64 inch |
| g | 43/64 inch |
| w | 5-1/8 inch |
| B | 1.5 inch |
| n | 0.626 inch |
| Bolt size | 1/2 inch |
| Bearing no | UC206-18 |
| Housing no | PH206 |
| Weight | 1.47 kg |
