SKU: UCPH205

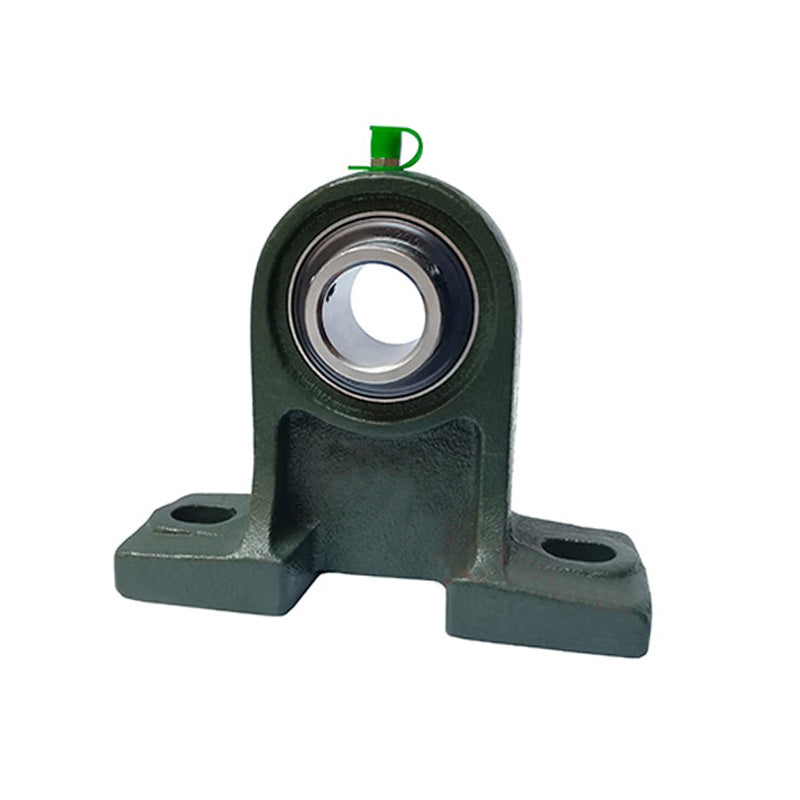

UCPH205 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 25mm Insert
UCPH205 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 25mm Insert
Regular price
$20.35
ex VAT
Regular price
Sale price
$20.35
ex VAT
In stock
Price Break
10+
$18.11
19+
$17.09
29+
$16.89
39+
$16.69
49+
$16.48
74+
$16.28
99+
$15.26
199+
$15.06
249+
$14.86
499+
$14.65
999+
$14.25
Couldn't load pickup availability
Description
Description
UCPH200 Series Normal Duty 2 Bolt Pillow Block Housings with Setscrews: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has a wide inner ring and 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25mm
- Style:
- UCPH
- Bolt Hole Centres:
- 105mm
Technical
Technical
| d | 25mm |
|---|---|
| h | 80mm |
| a | 140mm |
| e | 105mm |
| b | 50mm |
| s1 | 13mm |
| s2 | 19mm |
| g | 16mm |
| w | 114mm |
| B | 34.1mm |
| n | 14.3mm |
| Bolt size | M10 |
| Bearing no | UC205 |
| Housing no | PH205 |
| Weight | 1.04 kg |
