SKU: UCP218D1-NTN

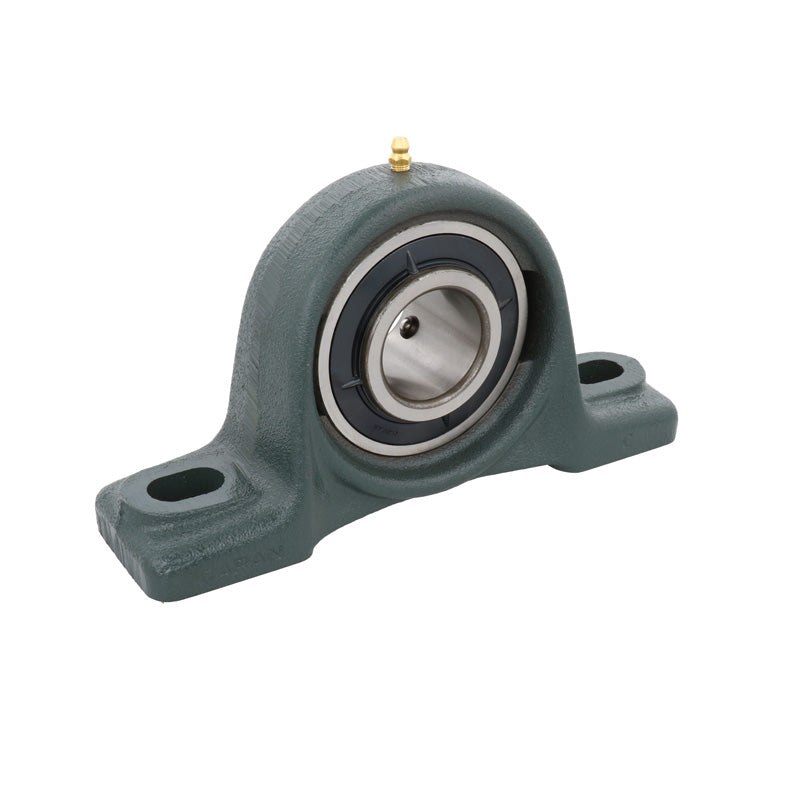

NTN UCP218D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 90mm Bore Insert - Allow 2-3 Days
NTN UCP218D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 90mm Bore Insert - Allow 2-3 Days
Regular price
$343.29
ex VAT
Regular price
Sale price
$343.29
ex VAT
In stock
Price Break
10+
$305.53
19+
$288.36
29+
$284.93
39+
$281.50
49+
$278.06
74+
$274.63
99+
$257.47
199+
$254.03
249+
$250.60
499+
$247.17
999+
$240.30
Couldn't load pickup availability
Description
Description
|
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 90mm
- Style:
- UCP
- Bolt Hole Centres:
- 262mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 90mm |
| H | 101.6mm |
| L | 327mm |
| J | 262mm |
| A | 88mm |
| N | 27mm |
| N<sub>1</sub> | 30mm |
| H<sub>1</sub> | 33mm |
| H<sub>2</sub> | 200mm |
| L<sub>1</sub> | 90mm |
| B | 96mm |
| S | 39.7mm |
| Fixing bolt | M22 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 106 kN |
| Static load C<sub>0r</sub> | 71.5 kN |
| Fatigue load limit C<sub>u</sub> | 5 kN |
| --- | Unit information |
| Mass | 13 kg |
