SKU: UCP.328

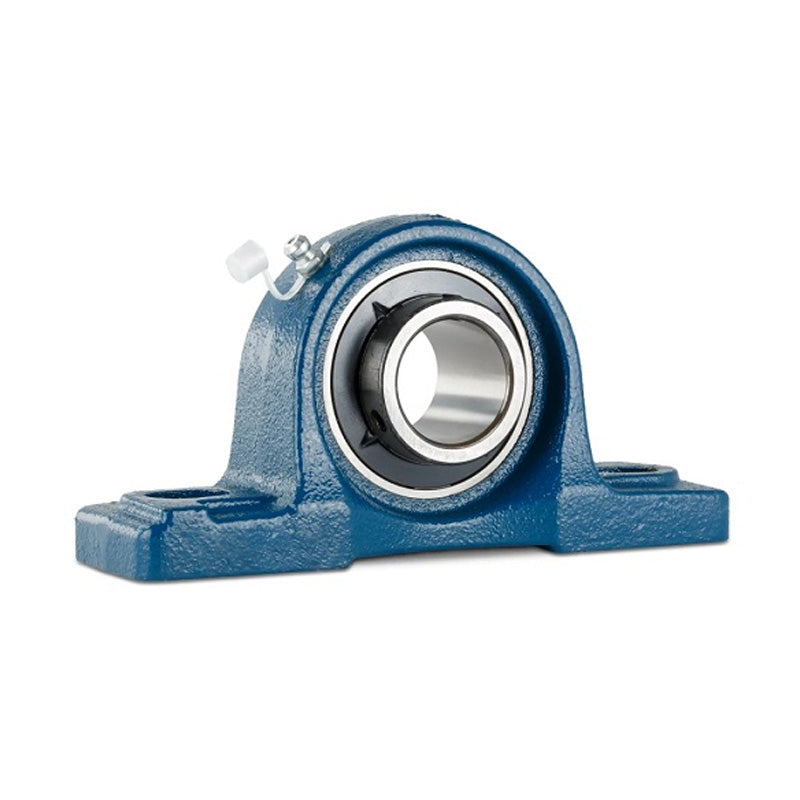

UCP328 Metric Two Bolt Cast Iron Plummer / Pillow Housing with 140mm Bore Insert
UCP328 Metric Two Bolt Cast Iron Plummer / Pillow Housing with 140mm Bore Insert
Regular price
$3,152.86
ex VAT
Regular price
Sale price
$3,152.86
ex VAT
In stock
Price Break
10+
$2,806.05
19+
$2,648.40
29+
$2,616.87
39+
$2,585.35
49+
$2,553.82
74+
$2,522.29
99+
$2,364.65
199+
$2,333.12
249+
$2,301.59
499+
$2,270.06
999+
$2,207.00
Couldn't load pickup availability
Description
Description
UCP 300 Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 140mm
- Style:
- UCP
- Bolt Hole Centres:
- 500mm
Technical
Technical
| d | 140mm |
|---|---|
| h | 200mm |
| a | 620mm |
| e | 500mm |
| b | 140mm |
| s2 | 55mm |
| s1 | 40mm |
| g | 60mm |
| w | 393mm |
| b1 | 145mm |
| n | 59mm |
| Bolt | 33mm |
| Weight | 91.2 kg |
| Dynamic load | 25300 kgf |
| Static load | 24600 kgf |
