SKU: UCP.326

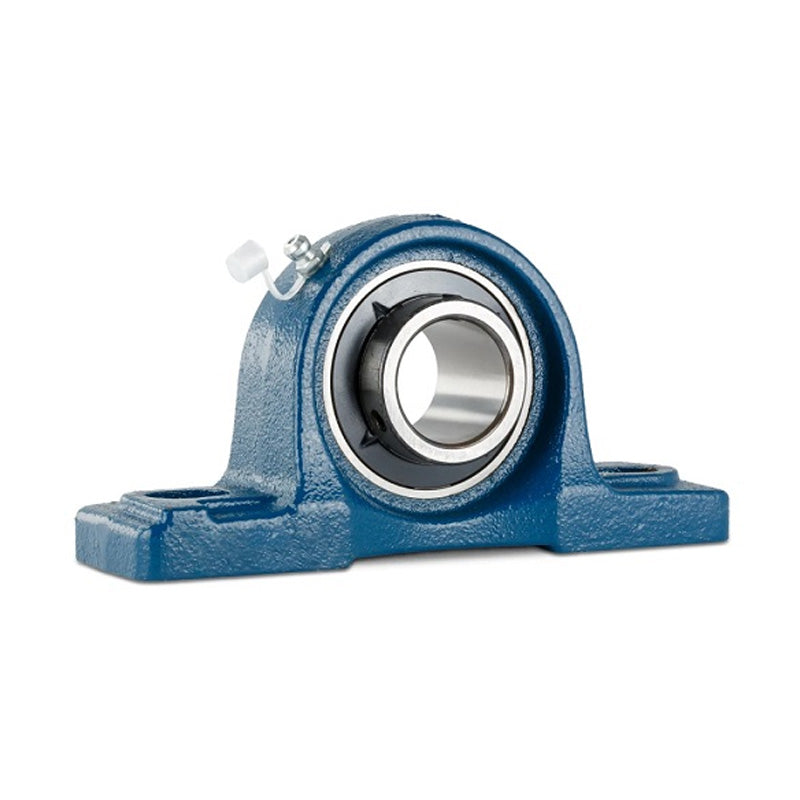

UCP326 Metric Two Bolt Cast Iron Plummer / Pillow Housing with 130mm Bore Insert
UCP326 Metric Two Bolt Cast Iron Plummer / Pillow Housing with 130mm Bore Insert
Regular price
$2,355.15
ex VAT
Regular price
Sale price
$2,355.15
ex VAT
In stock
Price Break
10+
$2,096.08
19+
$1,978.33
29+
$1,954.77
39+
$1,931.22
49+
$1,907.67
74+
$1,884.12
99+
$1,766.36
199+
$1,742.81
249+
$1,719.26
499+
$1,695.71
999+
$1,648.61
Couldn't load pickup availability
Description
Description
UCP 300 Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 130mm
- Style:
- UCP
- Bolt Hole Centres:
- 480mm
Technical
Technical
| d | 130mm |
|---|---|
| h | 180mm |
| a | 600mm |
| e | 480mm |
| b | 140mm |
| s2 | 55mm |
| s1 | 40mm |
| g | 50mm |
| w | 355mm |
| b1 | 135mm |
| n | 54mm |
| Bolt | 33mm |
| Weight | 72.1 kg |
| Dynamic load | 22900 kgf |
| Static load | 21400 kgf |
