SKU: UCP.313
UCP313 Metric Two Bolt Cast Iron Plummer / Pillow Housing with 65mm Bore Insert
UCP313 Metric Two Bolt Cast Iron Plummer / Pillow Housing with 65mm Bore Insert
Regular price
$194.86
ex VAT
Regular price
Sale price
$194.86
ex VAT
In stock
Price Break
10+
$173.43
19+
$163.68
29+
$161.73
39+
$159.79
49+
$157.84
74+
$155.89
99+
$146.15
199+
$144.20
249+
$142.25
499+
$140.30
999+
$136.40
Couldn't load pickup availability
Description
Description

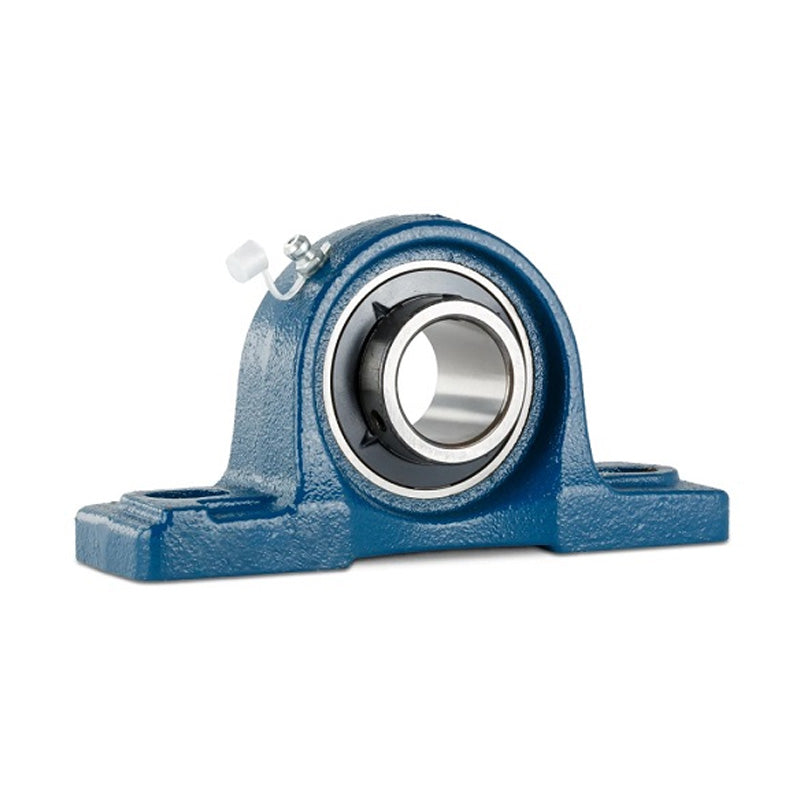

UCP 300 Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 65mm
- Style:
- UCP
- Bolt Hole Centres:
- 260mm
Technical
Technical
| d | 65mm |
|---|---|
| h | 90mm |
| a | 340mm |
| e | 260mm |
| b | 90mm |
| s2 | 38mm |
| s1 | 25mm |
| g | 35mm |
| w | 176mm |
| b1 | 75mm |
| n | 30mm |
| Bolt | 20mm |
| Weight | 10.3 kg |
| Dynamic load | 7370 kgf |
| Static load | 5780 kgf |
