SKU: UCP.309

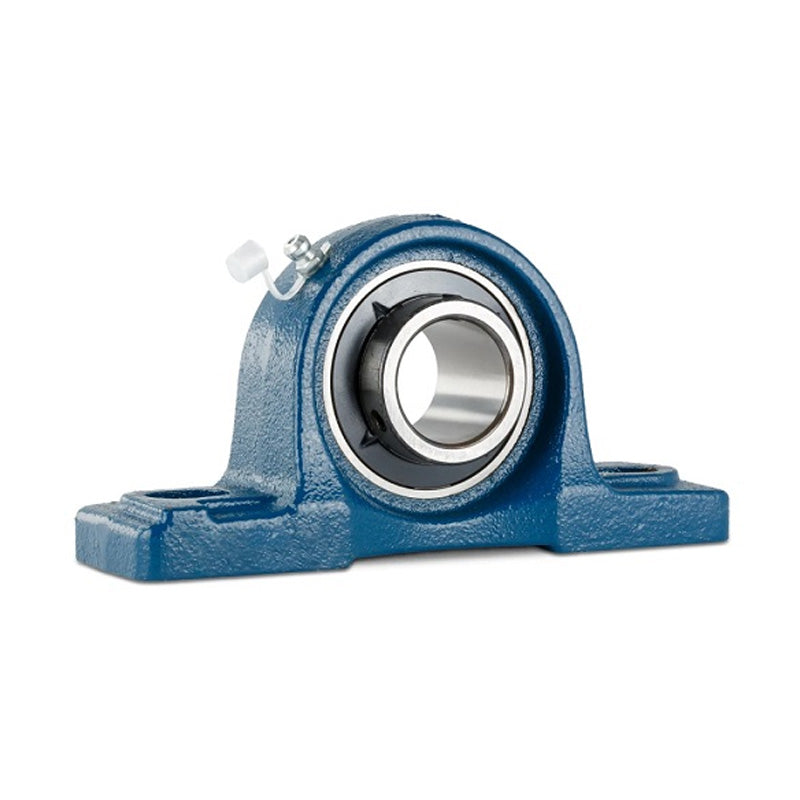

UCP309 Metric Two Bolt Cast Iron Plummer / Pillow Housing with 45mm Bore Insert
UCP309 Metric Two Bolt Cast Iron Plummer / Pillow Housing with 45mm Bore Insert
Regular price
$88.99
ex VAT
Regular price
Sale price
$88.99
ex VAT
In stock
Price Break
10+
$79.20
19+
$74.75
29+
$73.86
39+
$72.97
49+
$72.08
74+
$71.19
99+
$66.74
199+
$65.85
249+
$64.96
499+
$64.07
999+
$62.29
Couldn't load pickup availability
Description
Description
UCP 300 Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 45mm
- Style:
- UCP
- Bolt Hole Centres:
- 190mm
Technical
Technical
| d | 45mm |
|---|---|
| h | 67mm |
| a | 245mm |
| e | 190mm |
| b | 67mm |
| s2 | 30mm |
| s1 | 20mm |
| g | 24mm |
| w | 129mm |
| b1 | 57mm |
| n | 22mm |
| Bolt | 16mm |
| Weight | 4.7 kg |
| Dynamic load | 4150 kgf |
| Static load | 3060 kgf |
