SKU: UCP.305

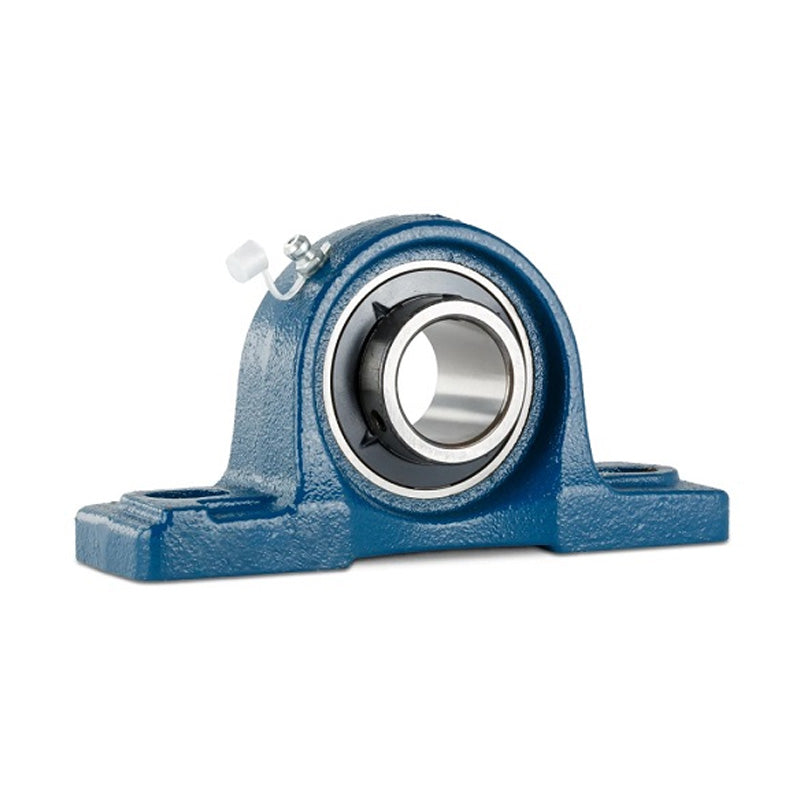

UCP305 Metric Two Bolt Cast Iron Plummer / Pillow Housing with 25mm Bore Insert
UCP305 Metric Two Bolt Cast Iron Plummer / Pillow Housing with 25mm Bore Insert
Regular price
$28.49
ex VAT
Regular price
Sale price
$28.49
ex VAT
In stock
Price Break
10+
$25.36
19+
$23.93
29+
$23.65
39+
$23.36
49+
$23.08
74+
$22.79
99+
$21.37
199+
$21.08
249+
$20.80
499+
$20.51
999+
$19.94
Couldn't load pickup availability
Description
Description
UCP 300 Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25mm
- Style:
- UCP
- Bolt Hole Centres:
- 132mm

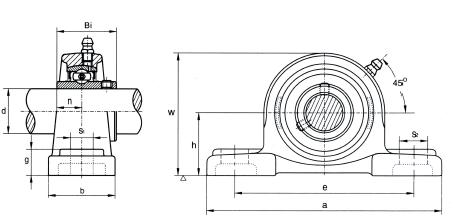

Technical
Technical
| d | 25mm |
|---|---|
| h | 45mm |
| a | 175mm |
| e | 132mm |
| b | 45mm |
| s2 | 20mm |
| s1 | 17mm |
| g | 65mm |
| w | 85mm |
| b1 | 38mm |
| n | 15mm |
| Bolt | 14mm |
| Weight | 1.6 kg |
| Dynamic load | 1760 kgf |
| Static load | 1160 kgf |
