SKU: UCP.215-48

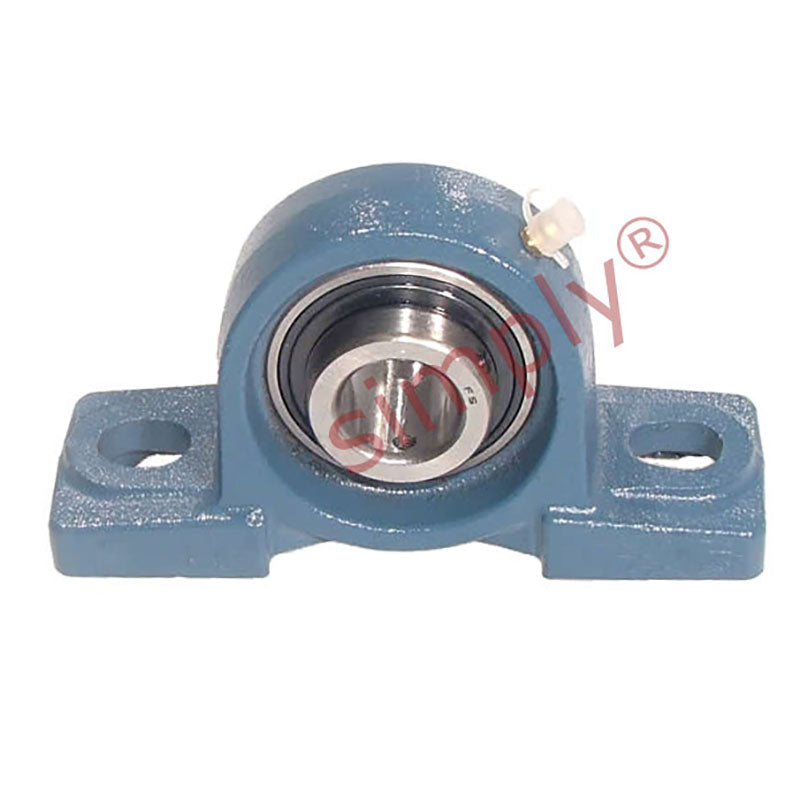

UCP215-48 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 3 inch Bore Insert
UCP215-48 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 3 inch Bore Insert
Regular price
$137.89
ex VAT
Regular price
Sale price
$137.89
ex VAT
Equivalent to: NP3
In stock
Price Break
3+
$65.12
4+
$61.46
9+
$60.73
19+
$60.00
49+
$59.27
99+
$58.54
499+
$54.88
999+
$54.15
1999+
$53.41
2999+
$52.68
4999+
$51.22
Description
Description
|
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Equivalent: NP3
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 76.2mm = 3 inch
- Style:
- UCP
- Bolt Hole Centres:
- 217mm
Technical
Technical
| d | 3 inch |
|---|---|
| h | 82.6mm |
| a | 275mm |
| e | 217mm |
| b | 74mm |
| s2 | 31mm |
| s1 | 25mm |
| g | 28mm |
| w | 163mm |
| B1 | 77.8mm |
| n | 33.3mm |
| Bolt Size | M20 |
| Weight | 7.6 kg |
| Dynamic load | 5190 kgf |
| Static load | 4190 kgf |
| Rec max speed | 2300 rpm |
