SKU: UCP.214
UCP214 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 70mm Bore Insert
UCP214 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 70mm Bore Insert
Regular price
$103.91
ex VAT
Regular price
Sale price
$103.91
ex VAT
Equivalent to: NP70
In stock
Price Break
10+
$92.48
19+
$87.28
29+
$86.25
39+
$85.21
49+
$84.17
74+
$83.13
99+
$77.93
199+
$76.89
249+
$75.85
499+
$74.82
999+
$72.74
Couldn't load pickup availability
Description
Description
|
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Equivalent: NP70
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 70mm
- Style:
- UCP
- Bolt Hole Centres:
- 210mm

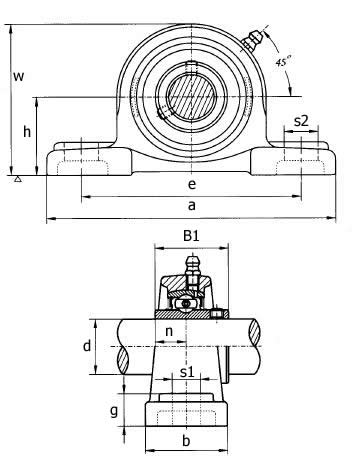

Technical
Technical
| d | 70mm |
|---|---|
| h | 79.4mm |
| a | 266mm |
| e | 210mm |
| b | 72mm |
| s2 | 31mm |
| s1 | 25mm |
| g | 27mm |
| w | 156mm |
| B1 | 74.6mm |
| n | 30.2mm |
| Bolt Size | M20 |
| Weight | 7 kg |
| Dynamic load | 4870 kgf |
| Static load | 3810 kgf |
| Rec max speed | 2450 rpm |
