SKU: UCP.207

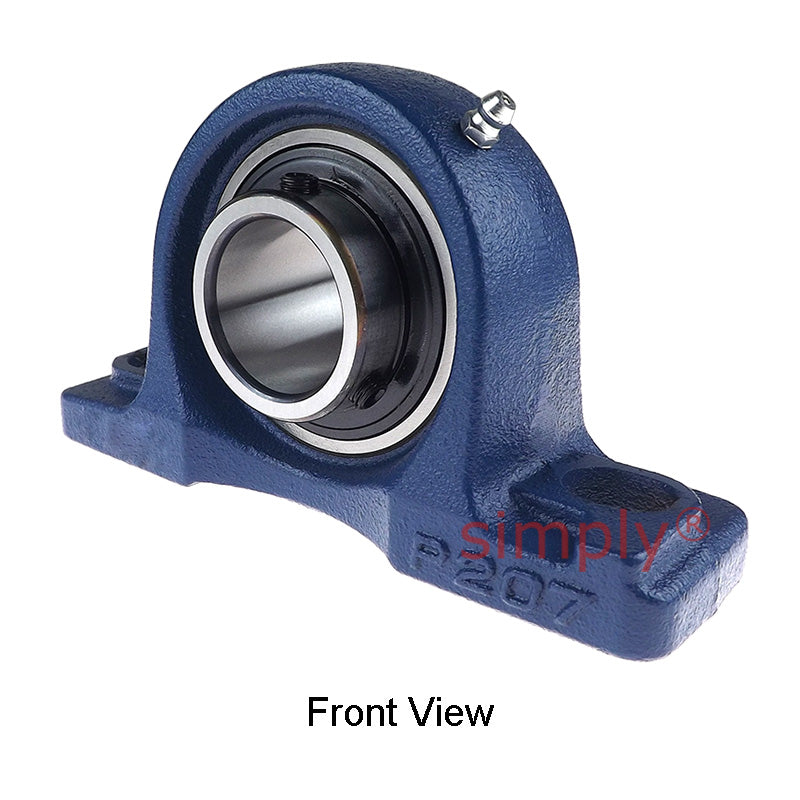

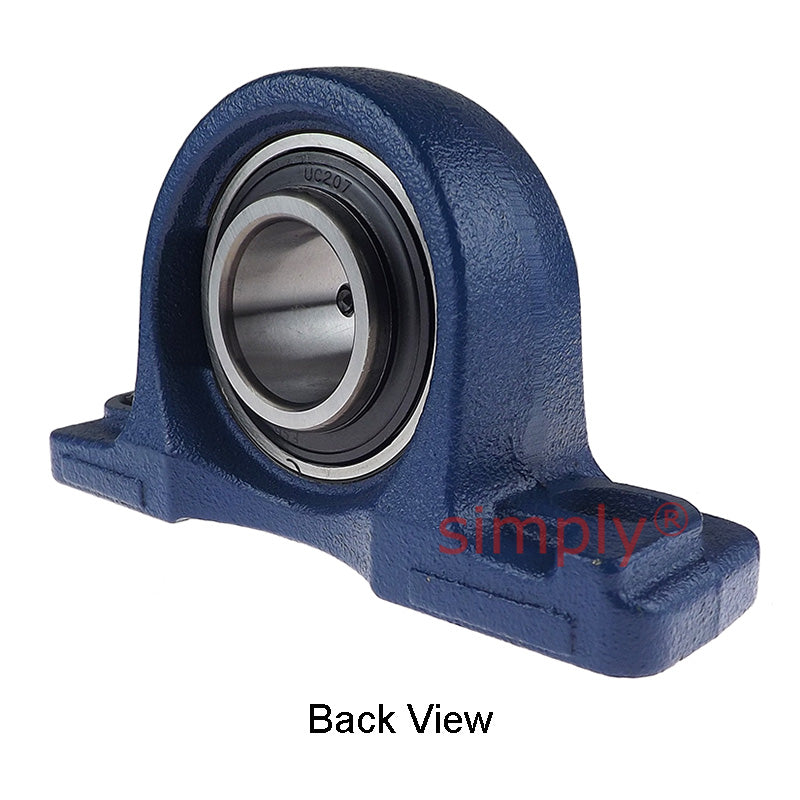

UCP207 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 35mm Bore Insert
UCP207 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 35mm Bore Insert
Regular price
$20.54
ex VAT
Regular price
Sale price
$20.54
ex VAT
Equivalent to: NP35
In stock
Price Break
3+
$9.70
4+
$9.16
9+
$9.05
19+
$8.94
49+
$8.83
99+
$8.72
499+
$8.18
999+
$8.07
1999+
$7.96
2999+
$7.85
4999+
$7.63
Description
Description
|
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Equivalent: NP35
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 35mm
- Style:
- UCP
- Bolt Hole Centres:
- 126mm
Technical
Technical
| d | 35mm |
|---|---|
| h | 47.6mm |
| a | 167mm |
| e | 126mm |
| b | 48mm |
| s2 | 21mm |
| s1 | 17mm |
| g | 19mm |
| w | 92mm |
| B1 | 42.9mm |
| n | 17.5mm |
| Bolt Size | M14 |
| Weight | 1.6 kg |
| Dynamic load | 2010 kgf |
| Static load | 1390 kgf |
| Rec max speed | 4500 rpm |
