SKU: UCP.204

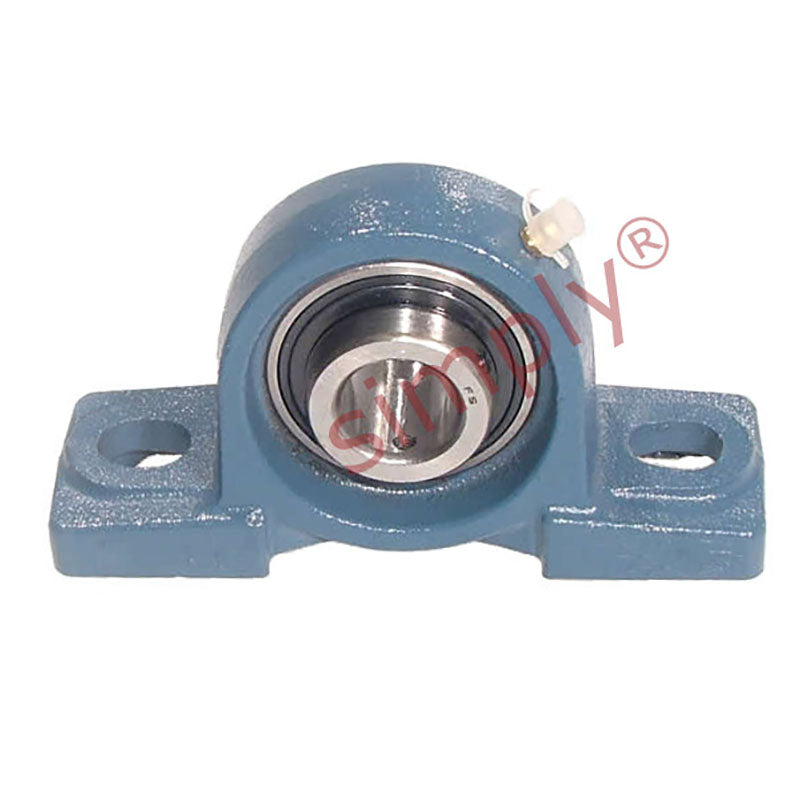

UCP204 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 20mm Bore Insert
UCP204 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 20mm Bore Insert
Regular price
$14.08
ex VAT
Regular price
Sale price
$14.08
ex VAT
Equivalent to: NP20
In stock
Price Break
3+
$6.65
4+
$6.27
9+
$6.20
19+
$6.13
49+
$6.05
99+
$5.98
499+
$5.60
999+
$5.53
1999+
$5.45
2999+
$5.38
4999+
$5.23
Description
Description
|
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Equivalent: NP20
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 20mm
- Style:
- UCP
- Bolt Hole Centres:
- 96mm
Technical
Technical
| d | 20mm |
|---|---|
| h | 33.3mm |
| a | 127mm |
| e | 96mm |
| b | 38mm |
| s2 | 19mm |
| s1 | 13mm |
| g | 15mm |
| w | 62mm |
| B1 | 31mm |
| n | 12.7mm |
| Bolt Size | M10 |
| Weight | 0.63 kg |
| Dynamic load | 1000 kgf |
| Static load | 630 kgf |
| Rec max speed | 7450 rpm |
