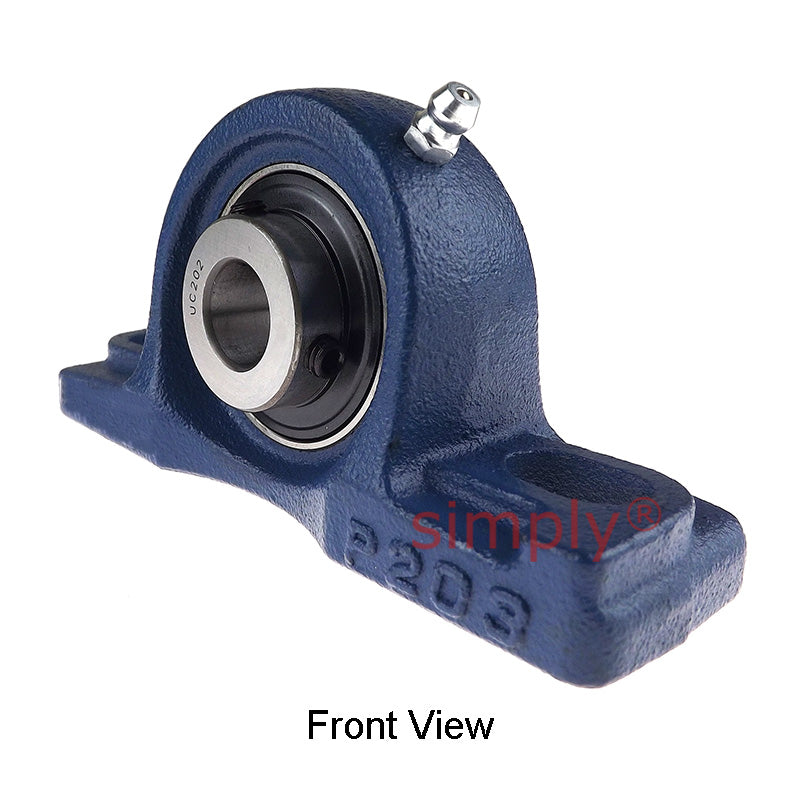

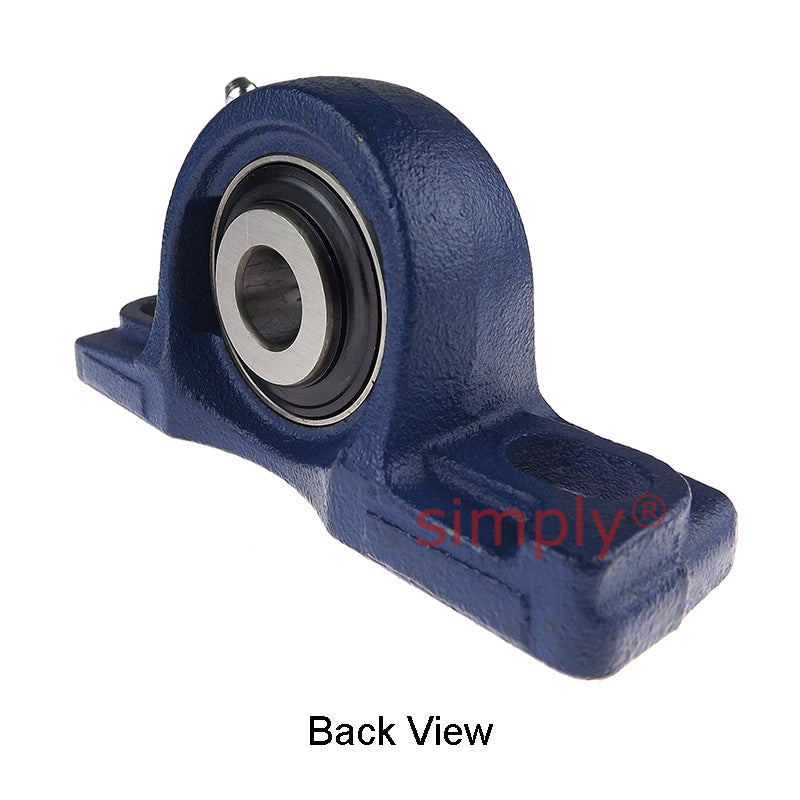

UCP202 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 15mm Bore Insert
UCP202 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 15mm Bore Insert
Regular price
$17.51
ex VAT
Regular price
Sale price
$17.51
ex VAT
Equivalent to: NP15
In stock
Price Break
3+
$8.27
4+
$7.80
9+
$7.71
19+
$7.62
49+
$7.52
99+
$7.43
499+
$6.97
999+
$6.87
1999+
$6.78
2999+
$6.69
4999+
$6.50
Description
Description
|
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Equivalent: NP15
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 15mm
- Style:
- UCP
- Bolt Hole Centres:
- 96mm
Technical
Technical
| d | 15mm |
|---|---|
| h | 30.2mm |
| a | 127mm |
| e | 96mm |
| b | 38mm |
| s2 | 19mm |
| s1 | 13mm |
| g | 15mm |
| w | 62mm |
| B1 | 31mm |
| n | 12.7mm |
| Bolt Size | M10 |
| Weight | 0.63 kg |
| Dynamic load | 760 kgf |
| Static load | 450 kgf |
| Rec max speed | 8800 rpm |
