SKU: UCLP212

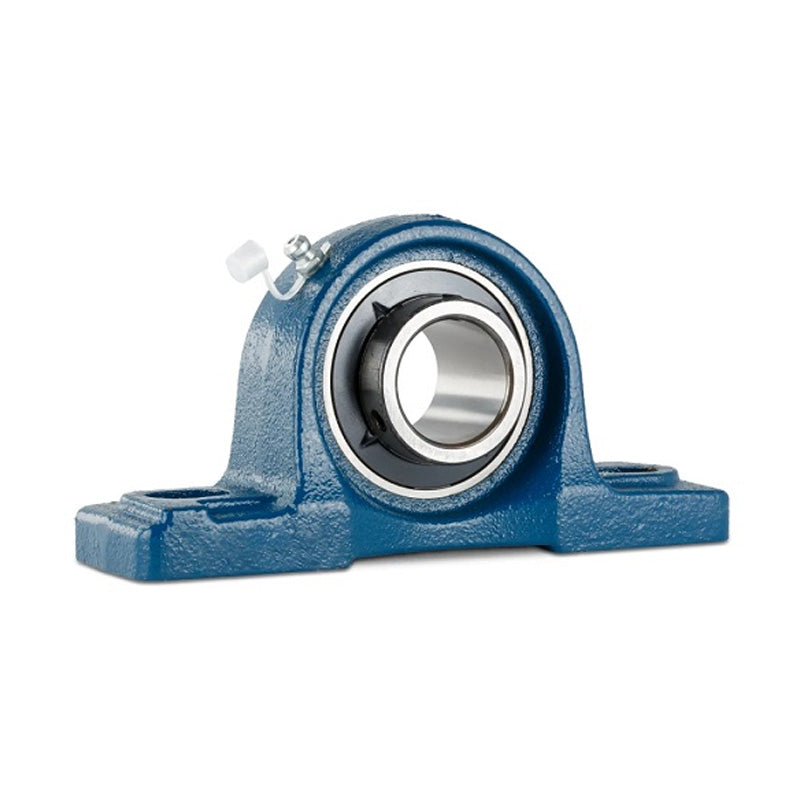

UCLP212 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 60mm Insert
UCLP212 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 60mm Insert
Regular price
$116.06
ex VAT
Regular price
Sale price
$116.06
ex VAT
In stock
Price Break
10+
$103.29
19+
$97.49
29+
$96.33
39+
$95.17
49+
$94.01
74+
$92.85
99+
$87.05
199+
$85.88
249+
$84.72
499+
$83.56
999+
$81.24
Couldn't load pickup availability
Description
Description
UCLP200 Series Normal Duty 2 Bolt Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 60mm
- Style:
- UCLP
- Bolt Hole Centres:
- 184mm
Technical
Technical
| d | 60mm |
|---|---|
| h | 68.26mm |
| a | 241mm |
| e | 184mm |
| b | 70mm |
| s1 | 20mm |
| s2 | 23mm |
| g | 25mm |
| w | 136mm |
| B | 65.1mm |
| n | 25.4mm |
| Bolt size | M16 |
| Bearing no | UC212 |
| Housing no | LP212 |
| Weight | 4.39 kg |
