SKU: UCLP210

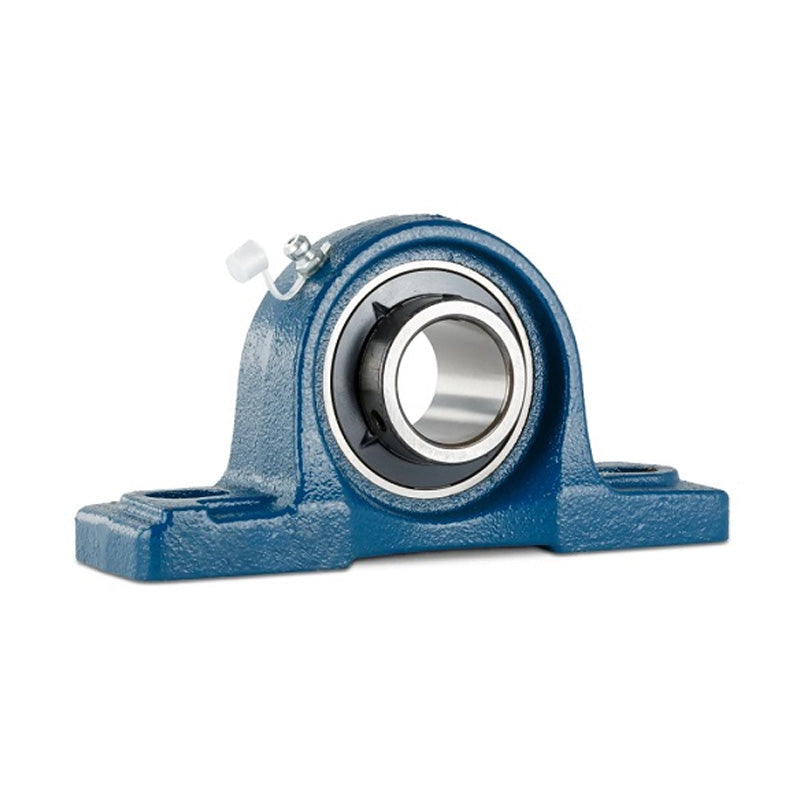

UCLP210 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Insert
UCLP210 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Insert
Regular price
$50.50
ex VAT
Regular price
Sale price
$50.50
ex VAT
In stock
Price Break
10+
$44.95
19+
$42.42
29+
$41.92
39+
$41.41
49+
$40.91
74+
$40.40
99+
$37.88
199+
$37.37
249+
$36.87
499+
$36.36
999+
$35.35
Couldn't load pickup availability
Description
Description
UCLP200 Series Normal Duty 2 Bolt Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50mm
- Style:
- UCLP
- Bolt Hole Centres:
- 159mm
Technical
Technical
| d | 50mm |
|---|---|
| h | 55.56mm |
| a | 206mm |
| e | 159mm |
| b | 60mm |
| s1 | 20mm |
| s2 | 23mm |
| g | 21mm |
| w | 112mm |
| B | 51.6mm |
| n | 19mm |
| Bolt size | M16 |
| Bearing no | UC210 |
| Housing no | LP210 |
| Weight | 2.6 kg |
