SKU: UCLP208-24

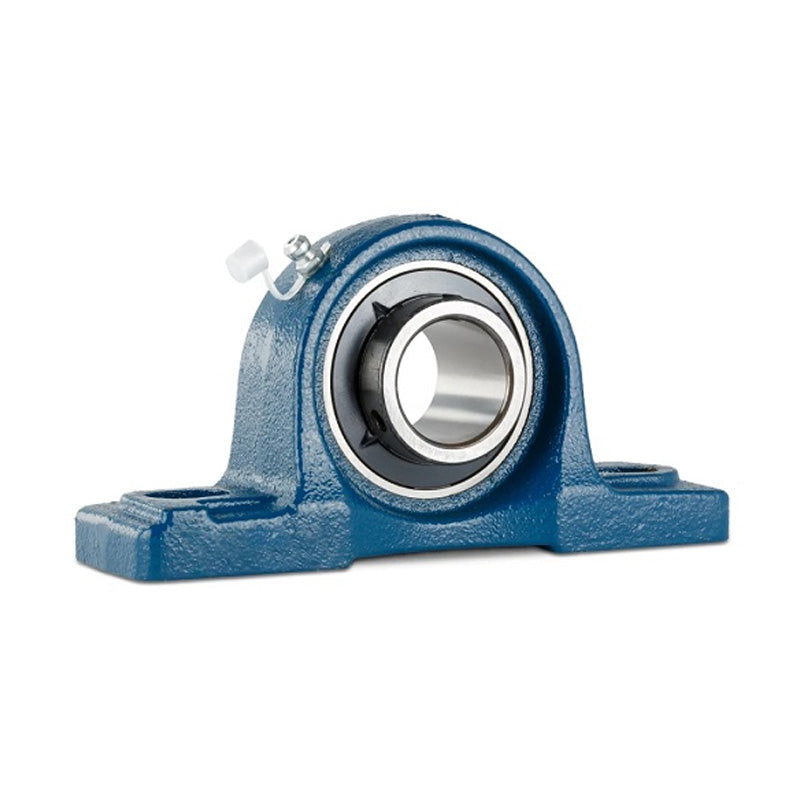

UCLP208-24 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-1/2 inch Insert
UCLP208-24 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-1/2 inch Insert
Regular price
$52.99
ex VAT
Regular price
Sale price
$52.99
ex VAT
In stock
Price Break
10+
$47.16
19+
$44.51
29+
$43.98
39+
$43.45
49+
$42.92
74+
$42.39
99+
$39.74
199+
$39.21
249+
$38.68
499+
$38.15
999+
$37.09
Couldn't load pickup availability
Description
Description
UCLP200 Series Normal Duty 2 Bolt Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 38.1mm = 1.5 (1-1/2) inch
- Style:
- UCLP
- Bolt Hole Centres:
- 137.32mm = 5.406 (5-13/32) inch
Technical
Technical
| d | 1-1/2 inch |
|---|---|
| h | 1-15/16 inch |
| a | 7-1/4 inch |
| e | 5-13/32 inch |
| b | 2-1/8 inch |
| s1 | 43/64 inch |
| s2 | 25/32 inch |
| g | 45/64 inch |
| w | 3-15/16 inch |
| B | 1.937 inch |
| n | 0.748 inch |
| Bolt size | 1/2 inch |
| Bearing no | UC208-24 |
| Housing no | LP208 |
| Weight | 1.91 kg |
