SKU: UCLP207-21

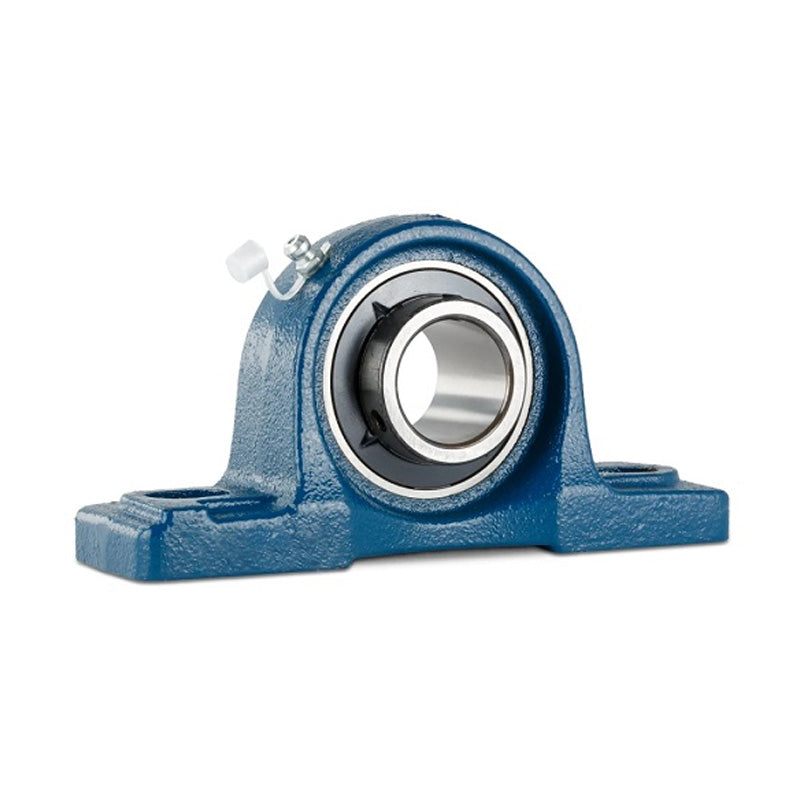

UCLP207-21 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-5/16 inch Insert
UCLP207-21 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-5/16 inch Insert
Regular price
$42.99
ex VAT
Regular price
Sale price
$42.99
ex VAT
In stock
Price Break
10+
$38.26
19+
$36.11
29+
$35.68
39+
$35.25
49+
$34.82
74+
$34.39
99+
$32.24
199+
$31.81
249+
$31.38
499+
$30.95
999+
$30.09
Couldn't load pickup availability
Description
Description
UCLP200 Series Normal Duty 2 Bolt Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 33.33mm = 1.312 (1-5/16) inch
- Style:
- UCLP
- Bolt Hole Centres:
- 127mm = 5 inch

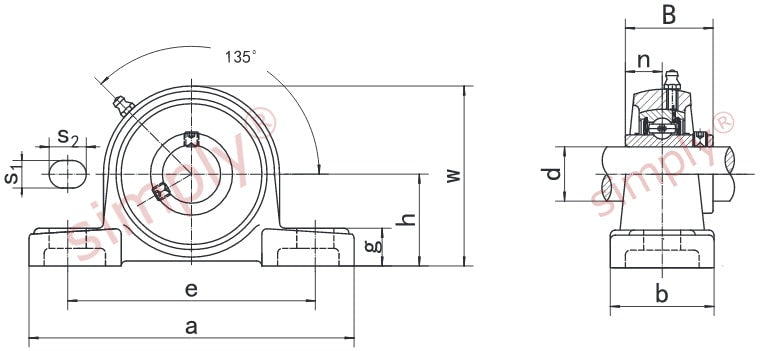

Technical
Technical
| d | 1-5/16 inch |
|---|---|
| h | 1-13/16 inch |
| a | 6-9/16 inch |
| e | 5 inch |
| b | 1-7/8 inch |
| s1 | 43/64 inch |
| s2 | 25/32 inch |
| g | 45/64 inch |
| w | 3-37/64 inch |
| B | 1.689 inch |
| n | 0.689 inch |
| Bolt size | 1/2 inch |
| Bearing no | UC207-21 |
| Housing no | LP207 |
| Weight | 1.45 kg |
