SKU: UCHA212

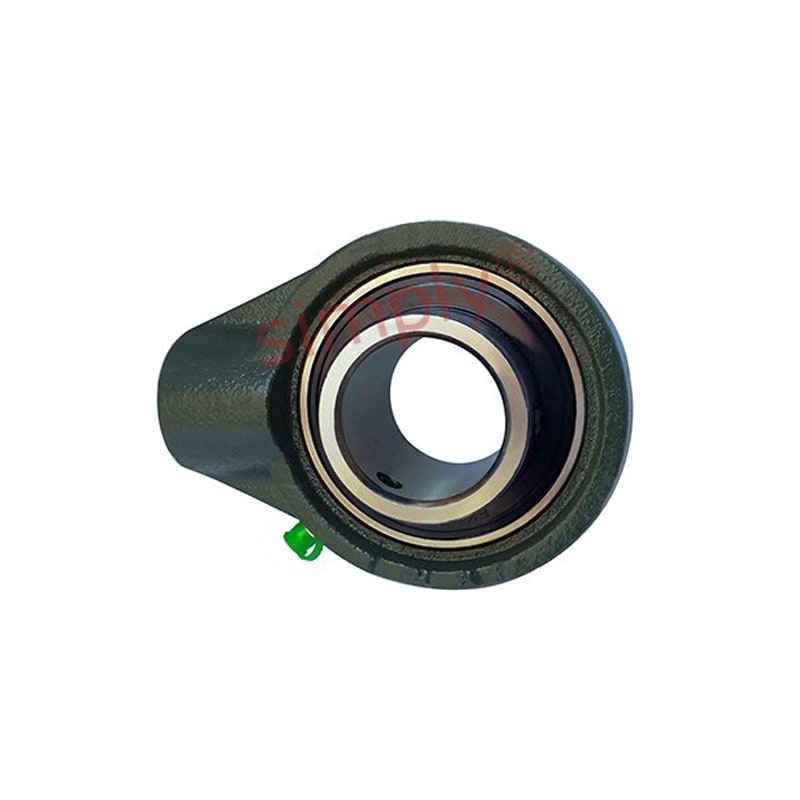

UCHA212 Metric Cast Iron Hanger Bearing Unit with 60mm Bore Insert
UCHA212 Metric Cast Iron Hanger Bearing Unit with 60mm Bore Insert
Regular price
$126.18
ex VAT
Regular price
Sale price
$126.18
ex VAT
In stock
Price Break
10+
$112.30
19+
$105.99
29+
$104.73
39+
$103.47
49+
$102.21
74+
$100.94
99+
$94.64
199+
$93.37
249+
$92.11
499+
$90.85
999+
$88.33
Couldn't load pickup availability
Description
Description
UCHA200 Series Normal Duty Screw Conveyor Hanger Units: These bearing units are supplied with a fully sealed bearing insert fitted and includes a grease nipple to facilitate lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 60mm
- Style:
- UCHA
Technical
Technical
| d | 60mm |
|---|---|
| h | 102mm |
| w | 173mm |
| b | 142mm |
| c | 9mm |
| a | 60mm |
| s | G1-1/4 |
| l | 28mm |
| B | 65.1mm |
| n | 25.4mm |
| Bearing no | UC212 |
| Housing no | HA212 |
| Weight | 3.555 kg |
