SKU: UCHA210

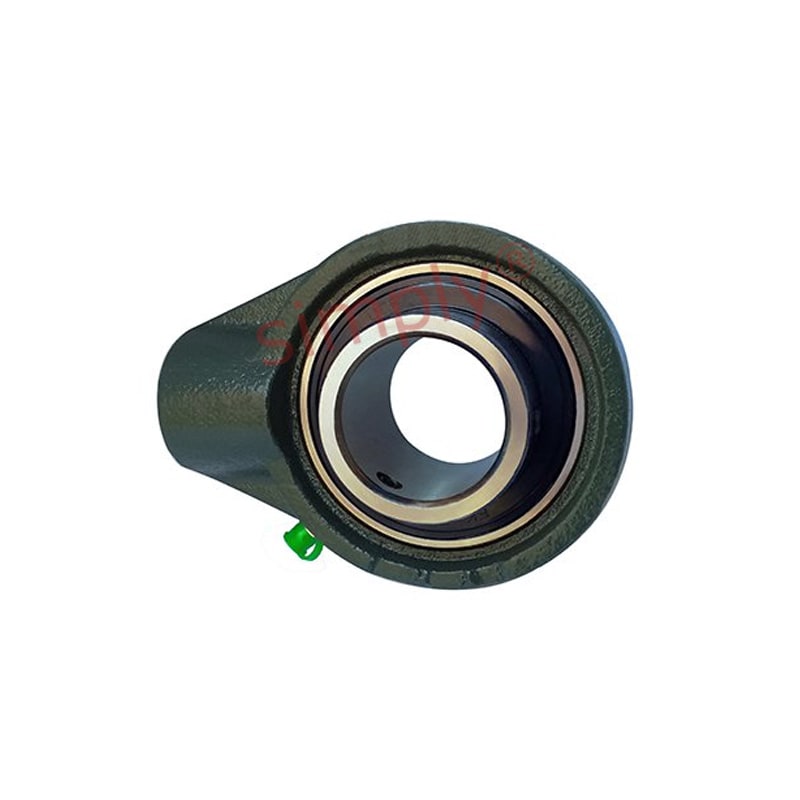

UCHA210 Metric Cast Iron Hanger Bearing Unit with 50mm Bore Insert
UCHA210 Metric Cast Iron Hanger Bearing Unit with 50mm Bore Insert
Regular price
$78.14
ex VAT
Regular price
Sale price
$78.14
ex VAT
In stock
Price Break
10+
$69.54
19+
$65.64
29+
$64.86
39+
$64.07
49+
$63.29
74+
$62.51
99+
$58.61
199+
$57.82
249+
$57.04
499+
$56.26
999+
$54.70
Couldn't load pickup availability
Description
Description
UCHA200 Series Normal Duty Screw Conveyor Hanger Units: These bearing units are supplied with a fully sealed bearing insert fitted and includes a grease nipple to facilitate lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50mm
- Style:
- UCHA
Technical
Technical
| d | 50mm |
|---|---|
| h | 83mm |
| w | 142mm |
| b | 118mm |
| c | 5mm |
| a | 48mm |
| s | G1 |
| l | 21mm |
| B | 51.6mm |
| n | 19mm |
| Bearing no | UC210 |
| Housing no | HA210 |
| Weight | 2.04 kg |
