SKU: UCFX.20-64

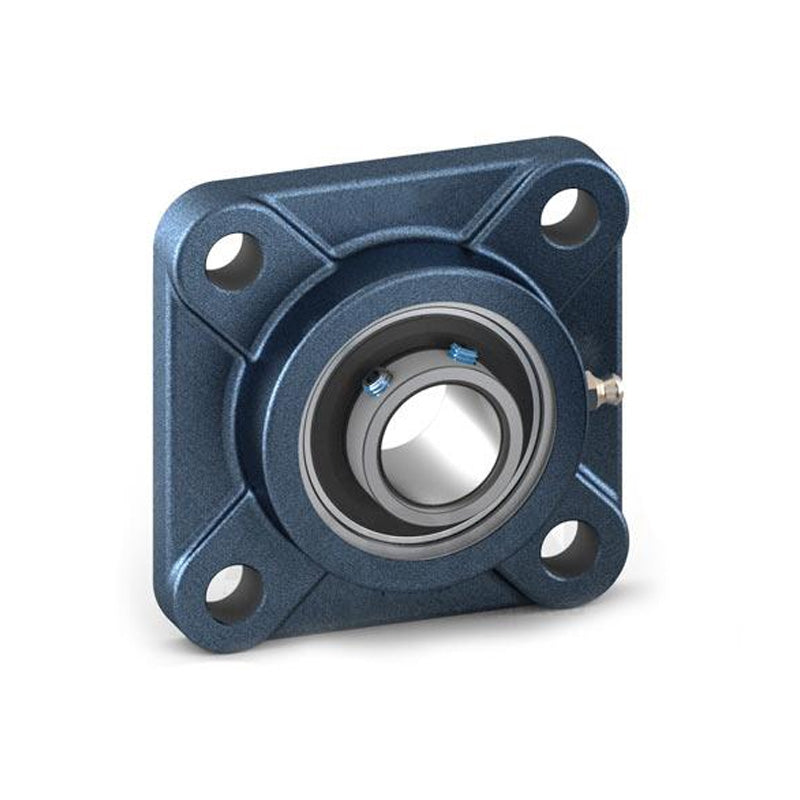

UCFX20-64 Imperial Four Bolt Cast Iron Square Housing with 4 inch Bore Insert
UCFX20-64 Imperial Four Bolt Cast Iron Square Housing with 4 inch Bore Insert
Regular price
$870.91
ex VAT
Regular price
Sale price
$870.91
ex VAT
In stock
Price Break
10+
$775.11
19+
$731.56
29+
$722.86
39+
$714.15
49+
$705.44
74+
$696.73
99+
$653.18
199+
$644.47
249+
$635.76
499+
$627.06
999+
$609.64
Couldn't load pickup availability
Description
Description
|
UCFX or MSF Series 4 Bolt Square Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 101.6mm = 4 inch
- Style:
- UCFX
- Bolt Hole Centres:
- 211mm
Technical
Technical
| d | 4 inch |
|---|---|
| a | 268mm |
| e | 211mm |
| i | 59mm |
| g | 31mm |
| L | 97mm |
| s | 31mm |
| Z | 127.3mm |
| Bi | 117.5mm |
| n | 49.2mm |
| Bolt Size | 27mm |
| Weight | 18.1 kg |
| Dynamic load | 13300 kgf |
| Static load | 10500 kgf |
