SKU: UCFX.14

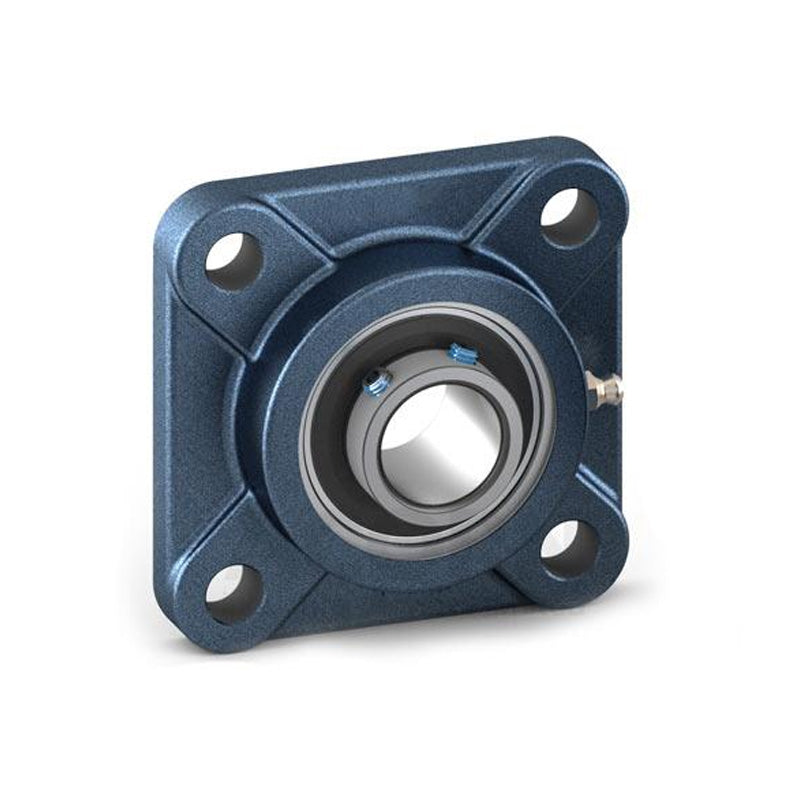

UCFX14 Metric Four Bolt Cast Iron Square Housing with 70mm Bore Insert
UCFX14 Metric Four Bolt Cast Iron Square Housing with 70mm Bore Insert
Regular price
$153.78
ex VAT
Regular price
Sale price
$153.78
ex VAT
Equivalent to: MSF70
In stock
Price Break
10+
$136.86
19+
$129.18
29+
$127.64
39+
$126.10
49+
$124.56
74+
$123.02
99+
$115.34
199+
$113.80
249+
$112.26
499+
$110.72
999+
$107.65
Couldn't load pickup availability
Description
Description
|
UCFX or MSF Series 4 Bolt Square Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Equivalent: MSF70
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 70mm
- Style:
- UCFX
- Bolt Hole Centres:
- 152mm
Technical
Technical
| d | 70mm |
|---|---|
| a | 197mm |
| e | 152mm |
| i | 37mm |
| g | 24mm |
| L | 60mm |
| s | 23mm |
| Z | 81.5mm |
| Bi | 77.8mm |
| n | 33.3mm |
| Bolt Size | M20 |
| Weight | 7.3 kg |
| Dynamic load | 5190 kgf |
| Static load | 4190 kgf |
| Rec max speed | 2300 rpm |
