SKU: UCFX.12-36

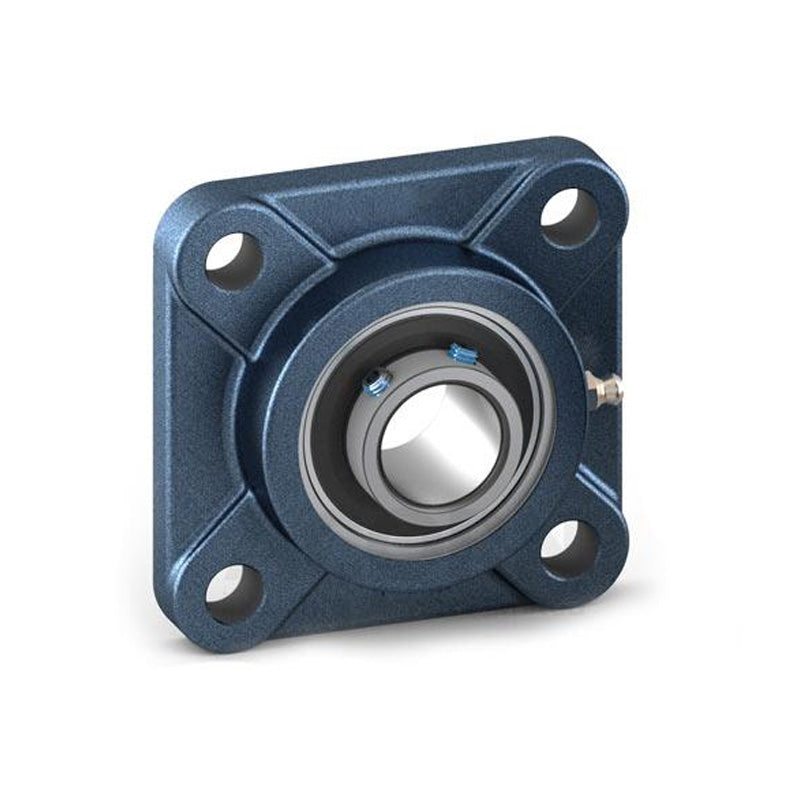

UCFX12-36 Imperial Four Bolt Cast Iron Square Housing with 2-1/4 inch Bore Insert
UCFX12-36 Imperial Four Bolt Cast Iron Square Housing with 2-1/4 inch Bore Insert
Regular price
$184.37
ex VAT
Regular price
Sale price
$184.37
ex VAT
In stock
Price Break
10+
$164.09
19+
$154.87
29+
$153.03
39+
$151.18
49+
$149.34
74+
$147.50
99+
$138.28
199+
$136.43
249+
$134.59
499+
$132.75
999+
$129.06
Couldn't load pickup availability
Description
Description
|
UCFX or MSF Series 4 Bolt Square Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 57.15mm = 2.25 (2-1/4) inch
- Style:
- UCFX
- Bolt Hole Centres:
- 149mm
Technical
Technical
| d | 2-1/4 inch |
|---|---|
| a | 187mm |
| e | 149mm |
| i | 34mm |
| g | 21mm |
| L | 59mm |
| s | 19mm |
| Z | 73.7mm |
| Bi | 70.7mm |
| n | 25.4mm |
| Bolt Size | M16 |
| Weight | 5.5 kg |
| Dynamic load | 4480 kgf |
| Static load | 3470 kgf |
