SKU: UCFX.06

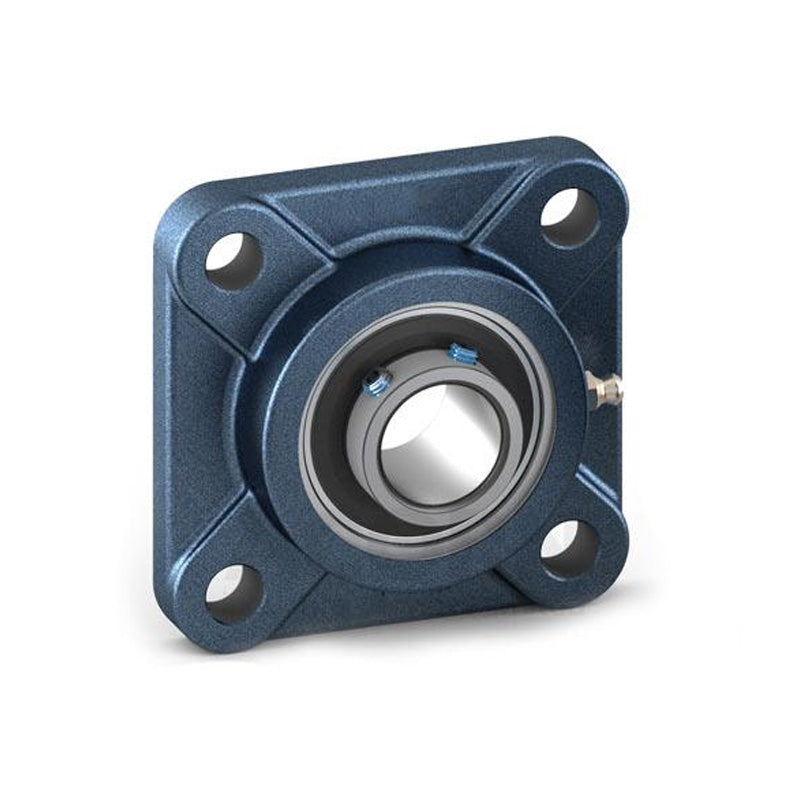

UCFX06 Metric Four Bolt Cast Iron Square Housing with 30mm Bore Insert
UCFX06 Metric Four Bolt Cast Iron Square Housing with 30mm Bore Insert
Regular price
$38.26
ex VAT
Regular price
Sale price
$38.26
ex VAT
Equivalent to: MSF30
In stock
Price Break
10+
$34.05
19+
$32.14
29+
$31.76
39+
$31.37
49+
$30.99
74+
$30.61
99+
$28.70
199+
$28.31
249+
$27.93
499+
$27.55
999+
$26.78
Couldn't load pickup availability
Share this product
Description
Description
|
UCFX or MSF Series 4 Bolt Square Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Equivalent: MSF30
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 30mm
- Style:
- UCFX
- Bolt Hole Centres:
- 92mm
Technical
Technical
| d | 30mm |
|---|---|
| a | 117mm |
| e | 92mm |
| i | 19mm |
| g | 14mm |
| L | 34mm |
| s | 16mm |
| Z | 44.4mm |
| Bi | 42.9mm |
| n | 17.5mm |
| Bolt Size | M14 |
| Weight | 1.4 kg |
| Dynamic load | 2010 kgf |
| Static load | 1390 kgf |
| Rec max speed | 4500 rpm |
