SKU: UCFX.05

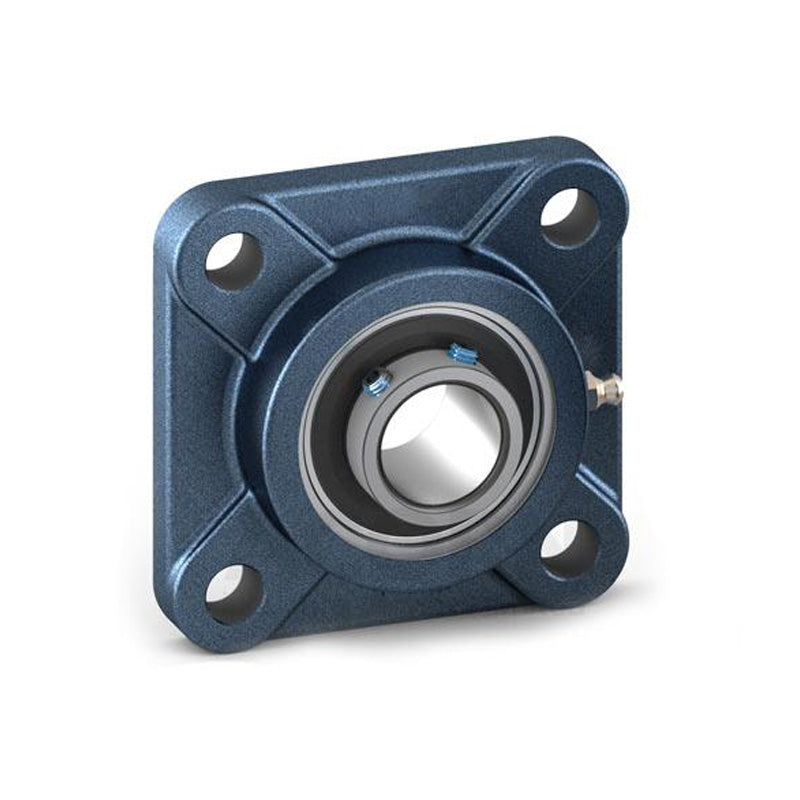

UCFX05 Metric Four Bolt Cast Iron Square Housing with 25mm Bore Insert
UCFX05 Metric Four Bolt Cast Iron Square Housing with 25mm Bore Insert
Regular price
$30.03
ex VAT
Regular price
Sale price
$30.03
ex VAT
Equivalent to: MSF25
In stock
Price Break
10+
$26.73
19+
$25.23
29+
$24.92
39+
$24.62
49+
$24.32
74+
$24.02
99+
$22.52
199+
$22.22
249+
$21.92
499+
$21.62
999+
$21.02
Couldn't load pickup availability
Description
Description
|
UCFX or MSF Series 4 Bolt Square Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Equivalent: MSF25
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25mm
- Style:
- UCFX
- Bolt Hole Centres:
- 83mm
Technical
Technical
| d | 25mm |
|---|---|
| a | 108mm |
| e | 83mm |
| i | 18mm |
| g | 13mm |
| L | 30mm |
| s | 12mm |
| Z | 40.2mm |
| Bi | 38.1mm |
| n | 15.9mm |
| Bolt Size | M10 |
| Weight | 1.035 kg |
| Dynamic load | 1520 kgf |
| Static load | 1020 kgf |
| Rec max speed | 5300 rpm |
