SKU: UCFS316D1-NTN

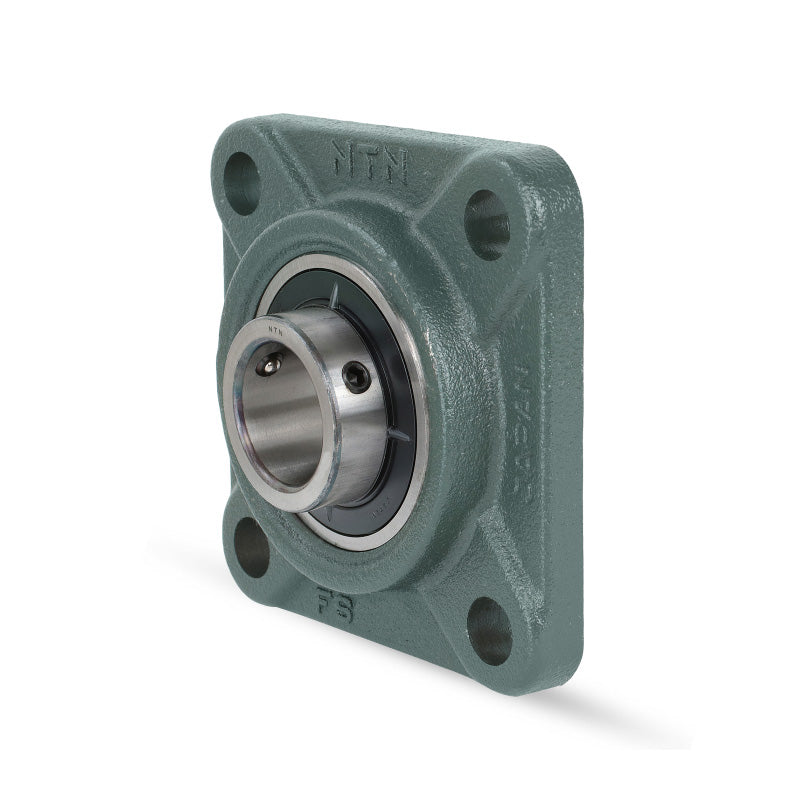

NTN UCFS316D1 Metric Four Bolt Square Cast Iron Flange Housing with 80mm Bore Insert - Allow 2-3 Days
NTN UCFS316D1 Metric Four Bolt Square Cast Iron Flange Housing with 80mm Bore Insert - Allow 2-3 Days
Regular price
$440.28
ex VAT
Regular price
Sale price
$440.28
ex VAT
In stock
Price Break
10+
$391.85
19+
$369.84
29+
$365.43
39+
$361.03
49+
$356.63
74+
$352.22
99+
$330.21
199+
$325.81
249+
$321.40
499+
$317.00
999+
$308.20
Couldn't load pickup availability
Description
Description
UCFS Series 4 Bolt Square Cast Iron Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the cast iron housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost-effective bearing/housing assembly, can be re-lubricated, replaceable insert, grub screw fixing
Benefits: Cost-effective bearing/housing assembly, can be re-lubricated, replaceable insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 80mm
- Style:
- UCFS
- Bolt Hole Centres:
- 196mm
Technical
Technical
| Shaft diameter | 80mm |
|---|---|
| L | 250mm |
| J | 196mm |
| A<sub>2</sub> | 18mm |
| N | 31mm |
| A<sub>3</sub> | 20mm |
| A<sub>1</sub> | 27mm |
| A | 68mm |
| H<sub>3</sub> | 210mm |
| A<sub>0</sub> | 90mm |
| B | 86mm |
| S | 34mm |
| Fixing bolt | M27 |
| Mass | 14 kg |
