SKU: UCFS306D1-NTN

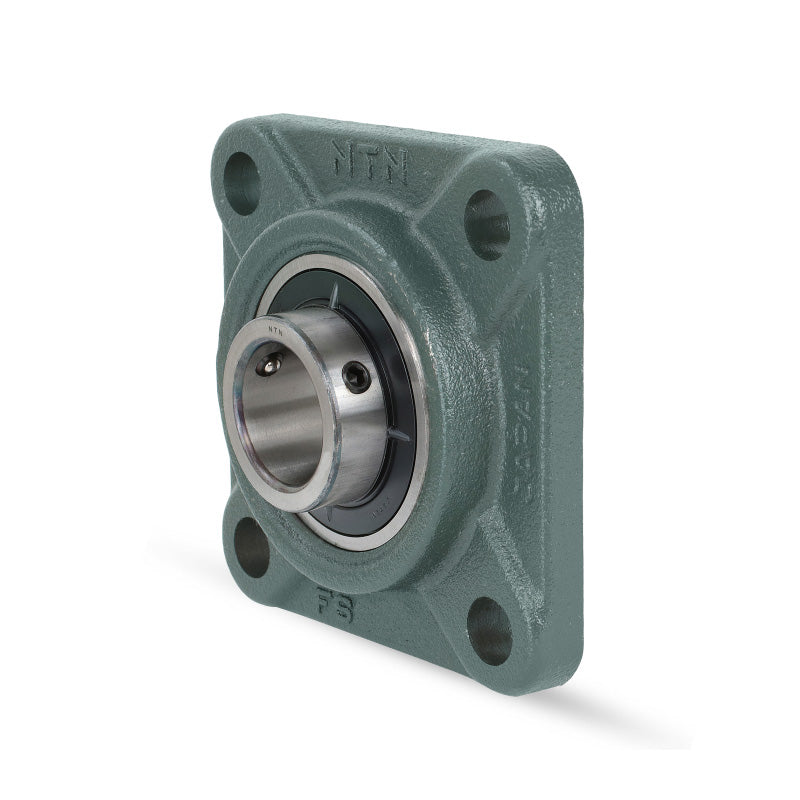

NTN UCFS306D1 Metric Four Bolt Square Cast Iron Flange Housing with 30mm Bore Insert - Allow 2-3 Days
NTN UCFS306D1 Metric Four Bolt Square Cast Iron Flange Housing with 30mm Bore Insert - Allow 2-3 Days
Regular price
$89.81
ex VAT
Regular price
Sale price
$89.81
ex VAT
In stock
Price Break
10+
$79.93
19+
$75.44
29+
$74.54
39+
$73.64
49+
$72.75
74+
$71.85
99+
$67.36
199+
$66.46
249+
$65.56
499+
$64.66
999+
$62.87
Couldn't load pickup availability
Description
Description
UCFS Series 4 Bolt Square Cast Iron Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the cast iron housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost-effective bearing/housing assembly, can be re-lubricated, replaceable insert, grub screw fixing
Benefits: Cost-effective bearing/housing assembly, can be re-lubricated, replaceable insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 30mm
- Style:
- UCFS
- Bolt Hole Centres:
- 95mm
Technical
Technical
| Shaft diameter | 30mm |
|---|---|
| L | 125mm |
| J | 95mm |
| A<sub>2</sub> | 10mm |
| N | 16mm |
| A<sub>3</sub> | 8mm |
| A<sub>1</sub> | 15mm |
| A | 32mm |
| H<sub>3</sub> | 90mm |
| A<sub>0</sub> | 44mm |
| B | 43mm |
| S | 17mm |
| Fixing bolt | M14 |
| Mass | 1.8 kg |
