SKU: UCFLX.09

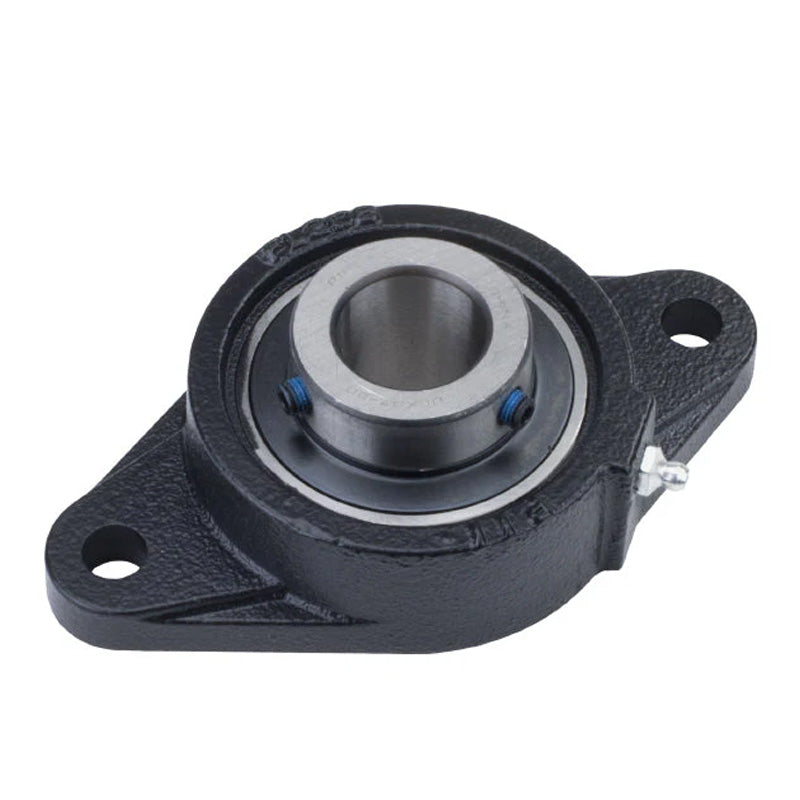

UCFLX09 Metric Two Bolt Oval Cast Iron Housing with 45mm Bore Insert
UCFLX09 Metric Two Bolt Oval Cast Iron Housing with 45mm Bore Insert
Regular price
$42.07
ex VAT
Regular price
Sale price
$42.07
ex VAT
Equivalent to: MSFT45
In stock
Price Break
10+
$37.44
19+
$35.34
29+
$34.92
39+
$34.50
49+
$34.08
74+
$33.66
99+
$31.55
199+
$31.13
249+
$30.71
499+
$30.29
999+
$29.45
Couldn't load pickup availability
Description
Description
|
UCFLX or MSFT Series Medium Duty 2 Bolt Oval Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted.
The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Equivalent: MSFT45
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 45mm
- Style:
- UCFLX
- Bolt Hole Centres:
- 157mm
Technical
Technical
| d | 45mm |
|---|---|
| a | 189mm |
| e | 157mm |
| i | 157mm |
| g | 16mm |
| l | 40mm |
| s | 16mm |
| b | 116mm |
| z | 55.6mm |
| Bi | 51.6mm |
| n | 19mm |
| Bolt | M14 |
| Weight | 2.4 kg |
| Dynamic load | 2750 kgf |
| Static load | 2020 kgf |
| Rec max speed | 3400 rpm |
