SKU: UCFLX.06

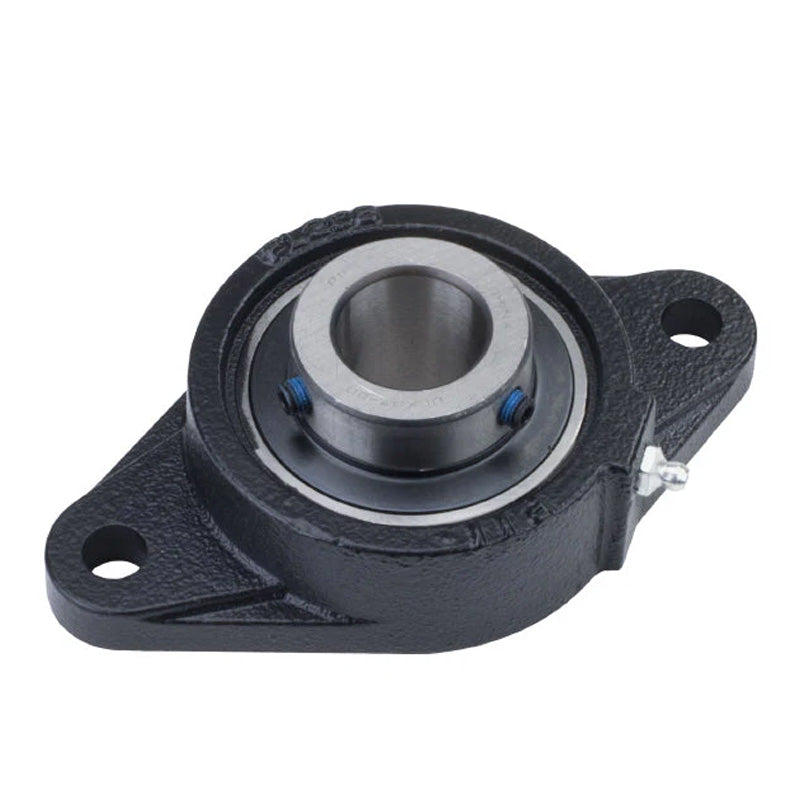

UCFLX06 Metric Two Bolt Oval Cast Iron Housing with 30mm Bore Insert
UCFLX06 Metric Two Bolt Oval Cast Iron Housing with 30mm Bore Insert
Regular price
$38.35
ex VAT
Regular price
Sale price
$38.35
ex VAT
Equivalent to: MSFT30
In stock
Price Break
10+
$34.13
19+
$32.21
29+
$31.83
39+
$31.45
49+
$31.06
74+
$30.68
99+
$28.76
199+
$28.38
249+
$28.00
499+
$27.61
999+
$26.85
Couldn't load pickup availability
Description
Description
|
UCFLX or MSFT Series Medium Duty 2 Bolt Oval Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted.
The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Equivalent: MSFT30
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 30mm
- Style:
- UCFLX
- Bolt Hole Centres:
- 130mm
Technical
Technical
| d | 30mm |
|---|---|
| a | 155mm |
| e | 130mm |
| i | 130mm |
| g | 15mm |
| l | 34mm |
| s | 16mm |
| b | 95mm |
| z | 44.4mm |
| Bi | 42.9mm |
| n | 17.5mm |
| Bolt | M14 |
| Weight | 1.4 kg |
| Dynamic load | 2010 kgf |
| Static load | 1390 kgf |
| Rec max speed | 4500 rpm |
