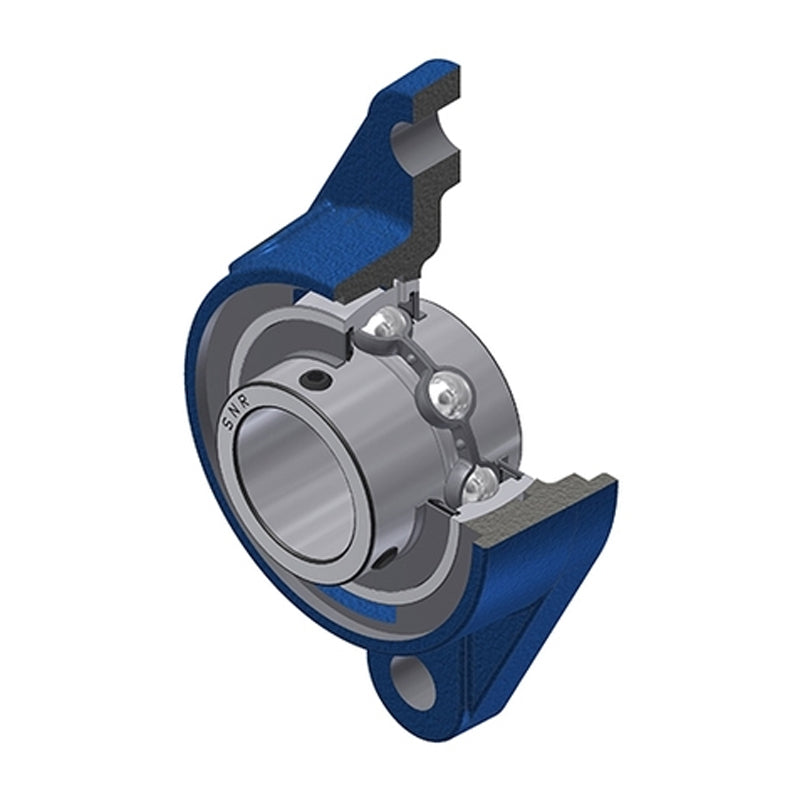

SNR UCFLE206-18N Imperial Two Bolt Oval Cast Iron Flange Housing with 1-1/8 inch Bore Insert - Allow 2-3 Days
SNR UCFLE206-18N Imperial Two Bolt Oval Cast Iron Flange Housing with 1-1/8 inch Bore Insert - Allow 2-3 Days
Regular price
$104.38
ex VAT
Regular price
Sale price
$104.38
ex VAT
In stock
Price Break
5+
$103.34
10+
$99.16
20+
$97.07
50+
$93.94
100+
$91.85
500+
$86.64
1000+
$73.07
Couldn't load pickup availability
Description
Description
|
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 28.58mm = 1.125 (1-1/8) inch
- Style:
- UCFLE
- Bolt Hole Centres:
- 116.5mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 1-1/8 inch |
| A | 32.1mm |
| A1 | 12mm |
| A2 | 42.2mm |
| B | 38.1mm |
| e | 20mm |
| H | 142mm |
| J | 116.5mm |
| L | 80mm |
| N | 11.5mm |
| S | 15.9mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 19.5 kN |
| Static load C0 | 11.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 3.7 Nm |
| Mass | 0.84 kg |
