SKU: UCFLE205-16-SNR

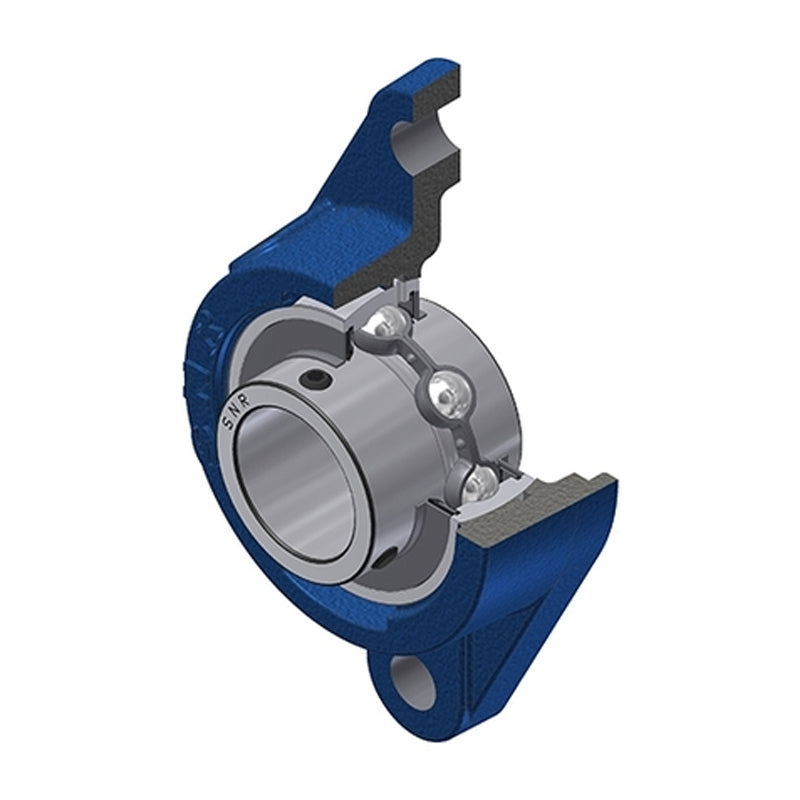

SNR UCFLE205-16 Imperial Two Bolt Oval Cast Iron Flange Housing with 1 inch Bore Insert
SNR UCFLE205-16 Imperial Two Bolt Oval Cast Iron Flange Housing with 1 inch Bore Insert
Regular price
$42.40
ex VAT
Regular price
Sale price
$42.40
ex VAT
In stock
Price Break
10+
$37.74
19+
$35.62
29+
$35.19
39+
$34.77
49+
$34.34
74+
$33.92
99+
$31.80
199+
$31.38
249+
$30.95
499+
$30.53
999+
$29.68
Couldn't load pickup availability
Description
Description
|
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 25.4mm = 1 Inch
- Style:
- UCFLE
- Bolt Hole Centres:
- 99mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 1 inch |
| A | 29.3mm |
| A1 | 11mm |
| A2 | 38.7mm |
| B | 34mm |
| e | 19mm |
| H | 124mm |
| J | 99mm |
| L | 70mm |
| N | 11.5mm |
| S | 14.3mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 14 kN |
| Static load C0 | 7.88 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 3.7 Nm |
| Mass | 0.6 kg |
