SKU: UCFL310

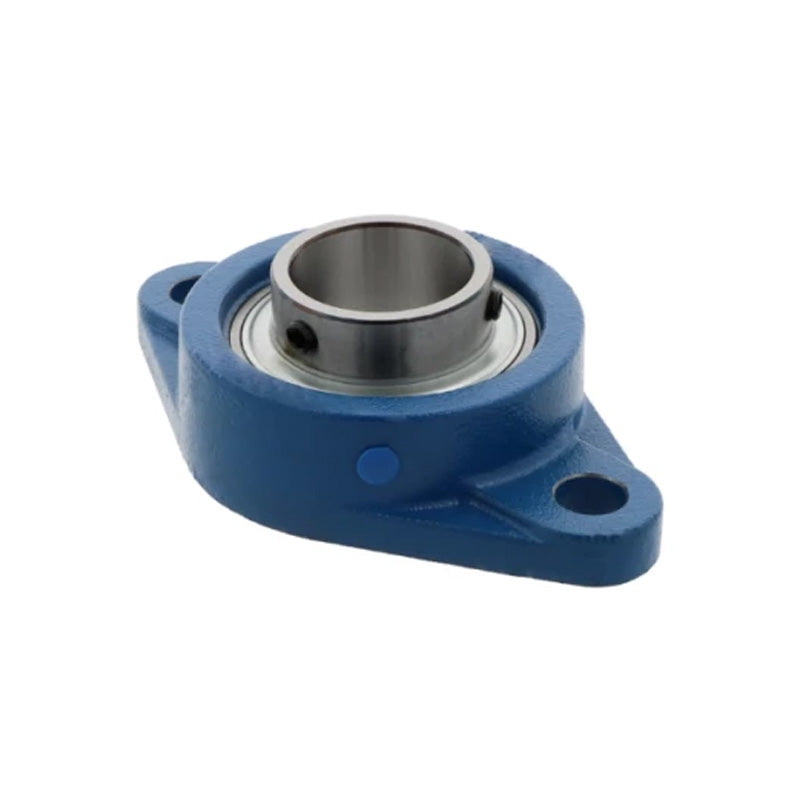

UCFL310 Heavy Duty Metric Two Bolt Cast Iron Oval Housing with 50mm Bore
UCFL310 Heavy Duty Metric Two Bolt Cast Iron Oval Housing with 50mm Bore
Regular price
$112.31
ex VAT
Regular price
Sale price
$112.31
ex VAT
In stock
Price Break
3+
$53.05
4+
$50.07
9+
$49.47
19+
$48.87
49+
$48.28
99+
$47.68
499+
$44.70
999+
$44.10
1999+
$43.51
2999+
$42.91
4999+
$41.72
Share this product
Description
Description
UCFL300 Series Heavy Duty 2 Bolt Oval Housings: These heavy-duty bearing units are supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50mm
- Style:
- UCFL
- Bolt Hole Centres:
- 187mm
Technical
Technical
| d | 50mm |
|---|---|
| a | 240mm |
| e | 187mm |
| i | 28mm |
| g | 19mm |
| l | 48mm |
| s | 25mm |
| b | 140mm |
| z | 67mm |
| B | 61mm |
| n | 22mm |
| Bolt size | M22 |
| Bearing no | UC310 |
| Housing no | FL310 |
| Weight | 3.993 kg |
