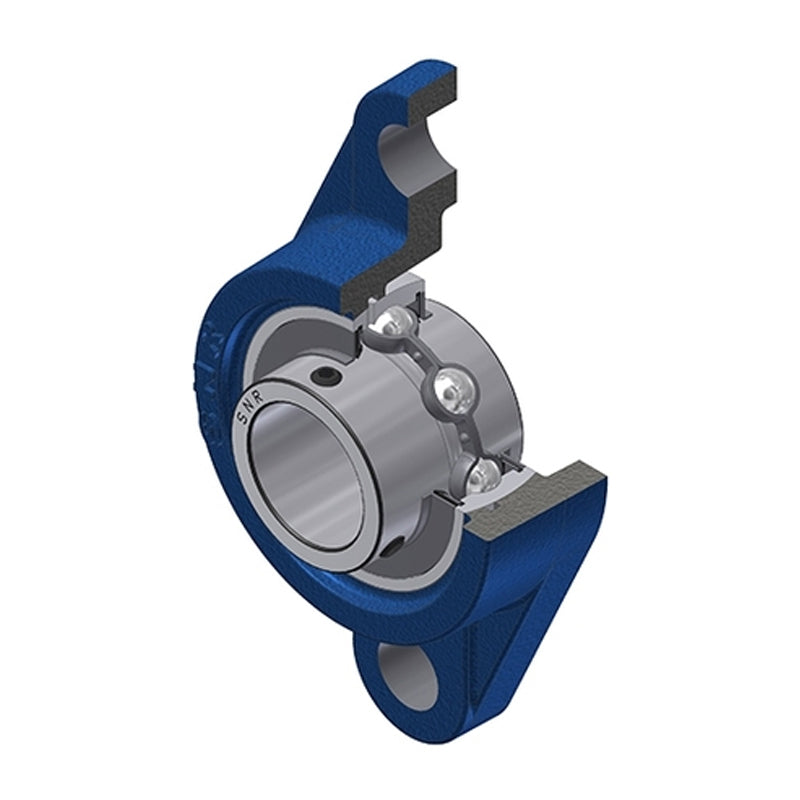

SNR UCFL308 Metric Two Bolt Oval Cast Iron Flange Housing with 40mm Bore Insert - Allow 2-3 Days
SNR UCFL308 Metric Two Bolt Oval Cast Iron Flange Housing with 40mm Bore Insert - Allow 2-3 Days
Regular price
$115.92
ex VAT
Regular price
Sale price
$115.92
ex VAT
In stock
Price Break
10+
$103.17
19+
$97.37
29+
$96.21
39+
$95.05
49+
$93.90
74+
$92.74
99+
$86.94
199+
$85.78
249+
$84.62
499+
$83.46
999+
$81.14
Couldn't load pickup availability
Description
Description
|
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 40mm
- Style:
- UCFL
- Bolt Hole Centres:
- 158mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 40mm |
| A | 40mm |
| A1 | 17mm |
| A2 | 56mm |
| B | 52mm |
| e | 23mm |
| H | 200mm |
| J | 158mm |
| L | 112mm |
| N | 23mm |
| S | 19mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 40.56 kN |
| Static load C0 | 24 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 22 Nm |
| Mass | 2.19 kg |
