SKU: UCFL308

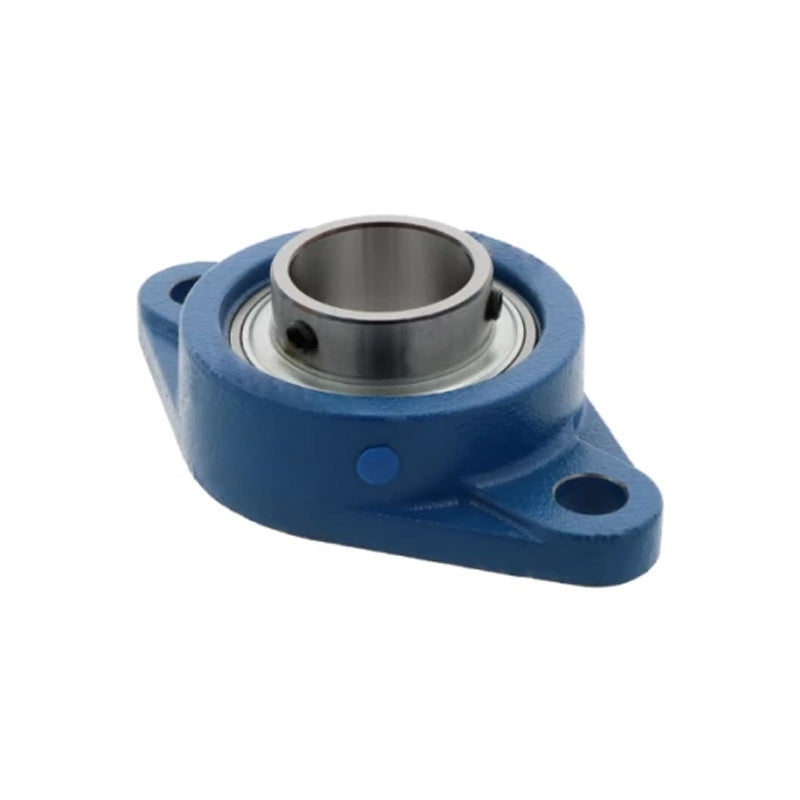

UCFL308 Heavy Duty Metric Two Bolt Cast Iron Oval Housing with 40mm Bore
UCFL308 Heavy Duty Metric Two Bolt Cast Iron Oval Housing with 40mm Bore
Regular price
$80.49
ex VAT
Regular price
Sale price
$80.49
ex VAT
In stock
Price Break
3+
$38.01
4+
$35.88
9+
$35.45
19+
$35.02
49+
$34.60
99+
$34.17
499+
$32.03
999+
$31.61
1999+
$31.18
2999+
$30.75
4999+
$29.90
Share this product
Description
Description
UCFL300 Series Heavy Duty 2 Bolt Oval Housings: These heavy-duty bearing units are supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 40mm
- Style:
- UCFL
- Bolt Hole Centres:
- 158mm
Technical
Technical
| d | 40mm |
|---|---|
| a | 200mm |
| e | 158mm |
| i | 23mm |
| g | 17mm |
| l | 40mm |
| s | 23mm |
| b | 112mm |
| z | 56mm |
| B | 52mm |
| n | 19mm |
| Bolt size | M20 |
| Bearing no | UC308 |
| Housing no | FL308 |
| Weight | 2.199 kg |
