SKU: UCFL207-23-SNR

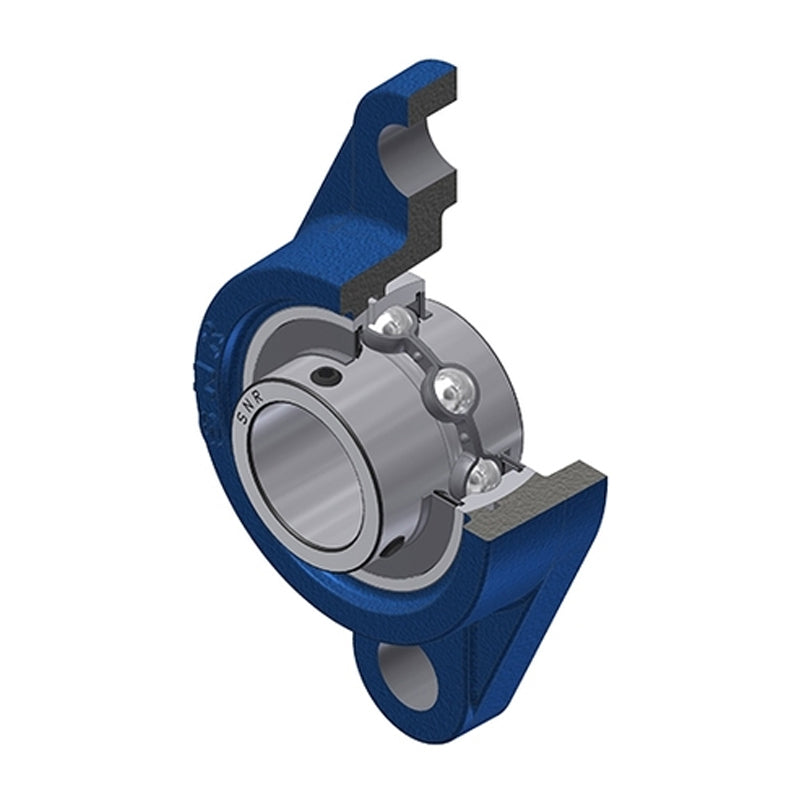

SNR UCFL207-23 Imperial Two Bolt Oval Cast Iron Flange Housing with 1-7/16 inch Bore Insert - Allow 2-3 Days
SNR UCFL207-23 Imperial Two Bolt Oval Cast Iron Flange Housing with 1-7/16 inch Bore Insert - Allow 2-3 Days
Regular price
$57.22
ex VAT
Regular price
Sale price
$57.22
ex VAT
In stock
Price Break
10+
$50.93
19+
$48.06
29+
$47.49
39+
$46.92
49+
$46.35
74+
$45.78
99+
$42.92
199+
$42.34
249+
$41.77
499+
$41.20
999+
$40.05
Couldn't load pickup availability
Description
Description
|
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 36.49mm = 1.436 (1-7/16) inch
- Style:
- UCFL
- Bolt Hole Centres:
- 130mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 1-7/16 inch |
| A | 34mm |
| A1 | 14mm |
| A2 | 44.4mm |
| B | 42.9mm |
| e | 19mm |
| H | 161mm |
| J | 130mm |
| L | 90mm |
| N | 16mm |
| S | 17.5mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 25.7 kN |
| Static load C0 | 15.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 8 Nm |
| Mass | 1.15 kg |
