SKU: UCFL.211-34

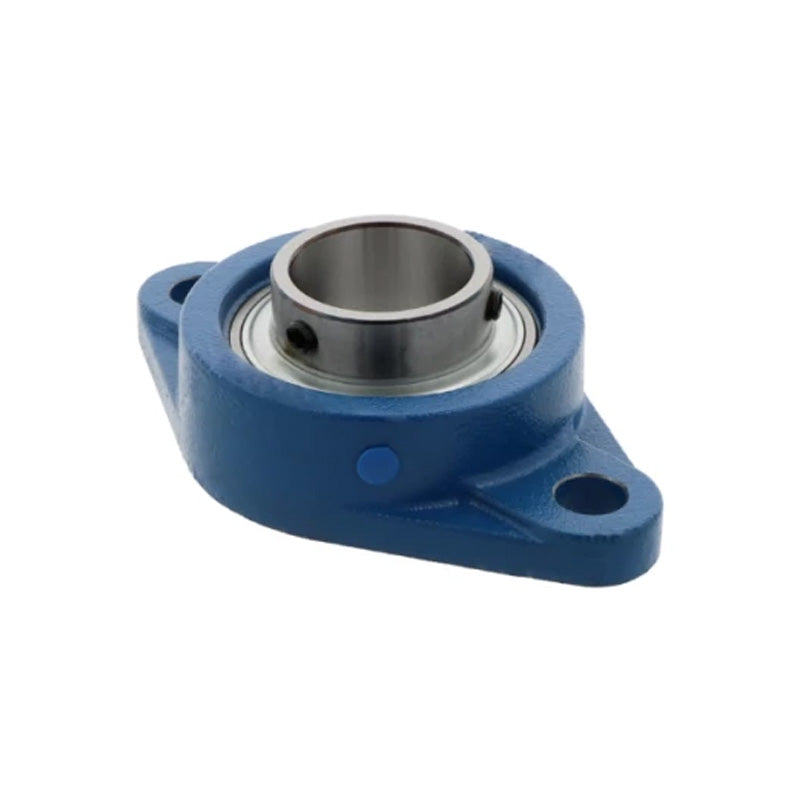

UCFL211-34 Imperial Two Bolt Oval Cast Iron Flange Housing with 2-1/8 inch Bore Insert
UCFL211-34 Imperial Two Bolt Oval Cast Iron Flange Housing with 2-1/8 inch Bore Insert
Regular price
$34.47
ex VAT
Regular price
Sale price
$34.47
ex VAT
In stock
Price Break
3+
$16.28
4+
$15.36
9+
$15.18
19+
$15.00
49+
$14.81
99+
$14.63
499+
$13.72
999+
$13.53
1999+
$13.35
2999+
$13.17
4999+
$12.80
Description
Description
|
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 53.98mm = 2.125 (2-1/8) inch
- Style:
- UCFL
- Bolt Hole Centres:
- 184mm
Technical
Technical
| d | 2-1/8 inch |
|---|---|
| a | 224mm |
| e | 184mm |
| i | 25mm |
| g | 18mm |
| L | 43mm |
| S | 19mm |
| b | 130mm |
| z | 58,4mm |
| B1 | 55.6mm |
| n | 22.2mm |
| Bolt Size | M16 |
| Weight | 3.2 kg |
| Dynamic load | 3400 kgf |
| Static load | 2550 kgf |
