SKU: UCFH207D1-NTN

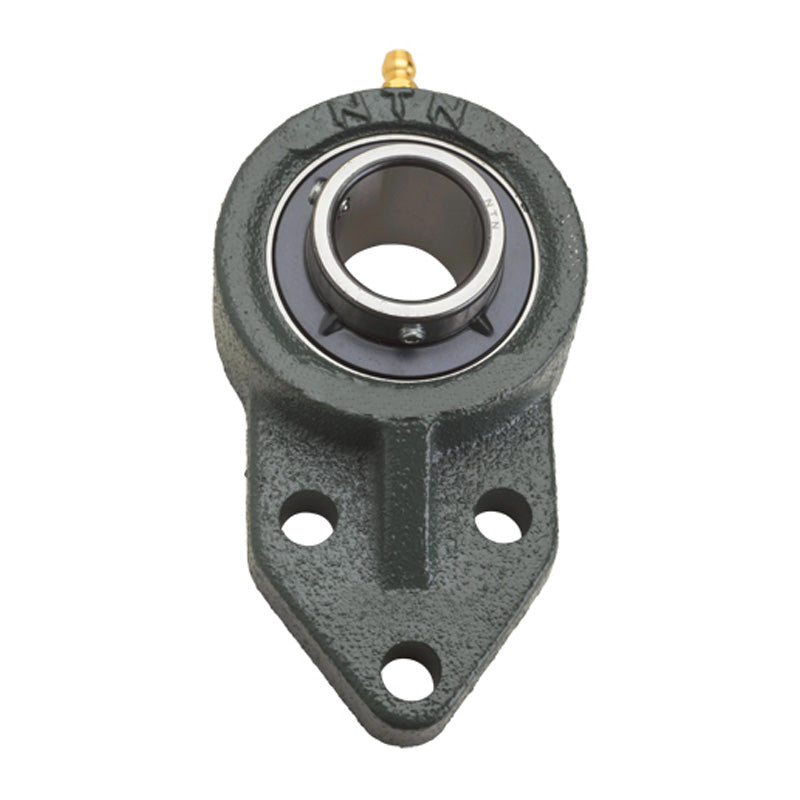

NTN UCFH207D1 Metric 3 Bolt Cast Iron Bracket Flange Bearing 35mm Bore - Allow 2-3 Days
NTN UCFH207D1 Metric 3 Bolt Cast Iron Bracket Flange Bearing 35mm Bore - Allow 2-3 Days
Regular price
$67.16
ex VAT
Regular price
Sale price
$67.16
ex VAT
In stock
Price Break
3+
$31.72
4+
$29.94
9+
$29.58
19+
$29.22
49+
$28.87
99+
$28.51
499+
$26.73
999+
$26.37
1999+
$26.02
2999+
$25.66
4999+
$24.95
Share this product
Description
Description
UCFH200 Series 3 Bolt Cast Iron Bracket Flange Units: These bearing units are supplied with a fully sealed bearing insert fitted in the flange housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 35mm
- Style:
- UCFH
- Bolt Hole Centres:
- 46mm
Technical
Technical
| Shaft diameter | 35mm |
|---|---|
| H<sub>3</sub> | 144mm |
| J | 46mm |
| A<sub>2</sub> | 19mm |
| A<sub>1</sub> | 15mm |
| A | 34mm |
| N | 10mm |
| H | 55mm |
| H<sub>1</sub> | 32mm |
| L<sub>1</sub> | 70mm |
| H<sub>2</sub> | 62mm |
| L | 90mm |
| A<sub>0</sub> | 44.4mm |
| B | 42.9mm |
| S | 17.5mm |
| Fixing bolt | M8 |
| Mass | 1.3 kg |
