SKU: UCFCX05

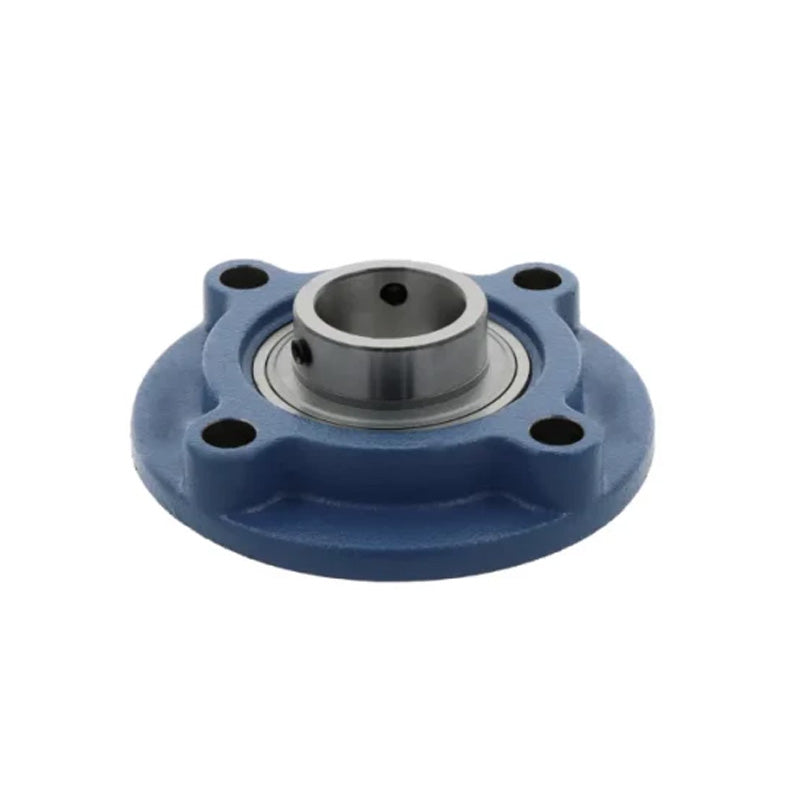

UCFCX05 Metric Four Bolt Cast Iron Round Flanged Housing with 25mm Insert
UCFCX05 Metric Four Bolt Cast Iron Round Flanged Housing with 25mm Insert
Regular price
$35.69
ex VAT
Regular price
Sale price
$35.69
ex VAT
In stock
Price Break
10+
$31.76
19+
$29.98
29+
$29.62
39+
$29.27
49+
$28.91
74+
$28.55
99+
$26.77
199+
$26.41
249+
$26.05
499+
$25.70
999+
$24.98
Couldn't load pickup availability
Description
Description
UCFCX Series Medium Duty 4 Bolt Round Housings: These medium-duty bearing units are supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25mm
- Style:
- UCFCX
- Pitch Circle Diameter:
- 65mm
Technical
Technical
| d | 25mm |
|---|---|
| a | 111mm |
| p | 92mm |
| (e) | 65mm |
| i | 10mm |
| s | 9.5mm |
| j | 6mm |
| k | 9.5mm |
| g | 24mm |
| f | 76mm |
| z | 32.2mm |
| B | 38.1mm |
| n | 15.9mm |
| Bolt size | M8 |
| Bearing no | UCX05 |
| Housing no | FCX05 |
| Weight | 1.1 kg |
