SKU: UCFC14

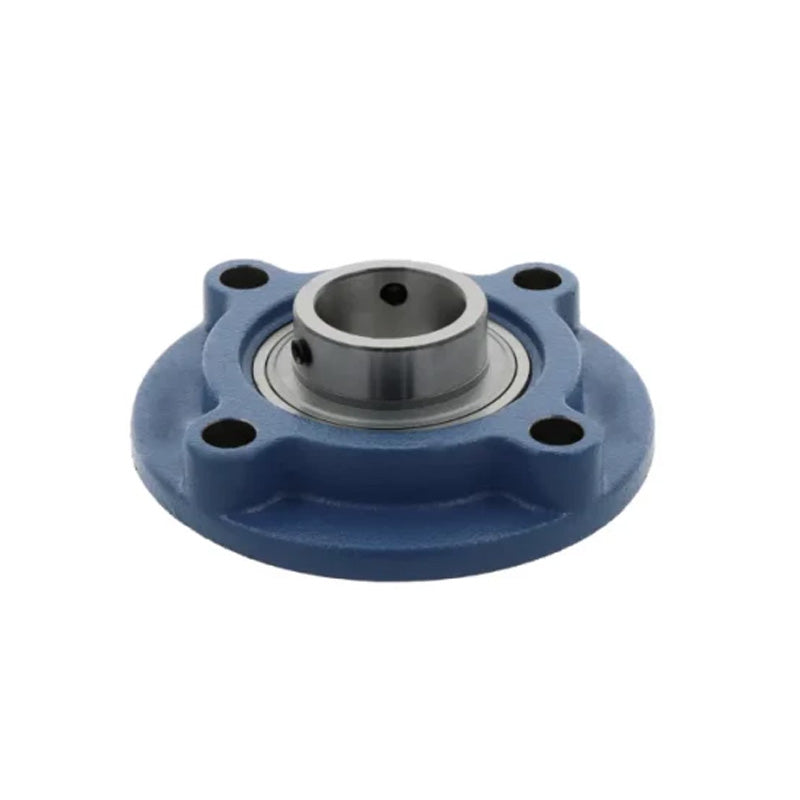

UCFC14 Metric Four Bolt Cast Iron Round Flanged Housing with 70mm Insert
UCFC14 Metric Four Bolt Cast Iron Round Flanged Housing with 70mm Insert
Regular price
$157.64
ex VAT
Regular price
Sale price
$157.64
ex VAT
In stock
Price Break
10+
$140.30
19+
$132.42
29+
$130.84
39+
$129.26
49+
$127.69
74+
$126.11
99+
$118.23
199+
$116.65
249+
$115.08
499+
$113.50
999+
$110.35
Couldn't load pickup availability
Description
Description
UCFCX Series Medium Duty 4 Bolt Round Housings: These medium-duty bearing units are supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 70mm
- Style:
- UCFCX
- Pitch Circle Diameter:
- 134.3mm
Technical
Technical
| d | 70mm |
|---|---|
| a | 222mm |
| p | 190mm |
| (e) | 134.3mm |
| i | 14mm |
| s | 19mm |
| j | 20mm |
| k | 14mm |
| g | 36mm |
| f | 164mm |
| z | 58.5mm |
| B | 77.8mm |
| n | 33.3mm |
| Bolt size | M16 |
| Bearing no | UCX14 |
| Housing no | FCX14 |
| Weight | 6.6 kg |
