SKU: UCFC.218.TS.CHAL

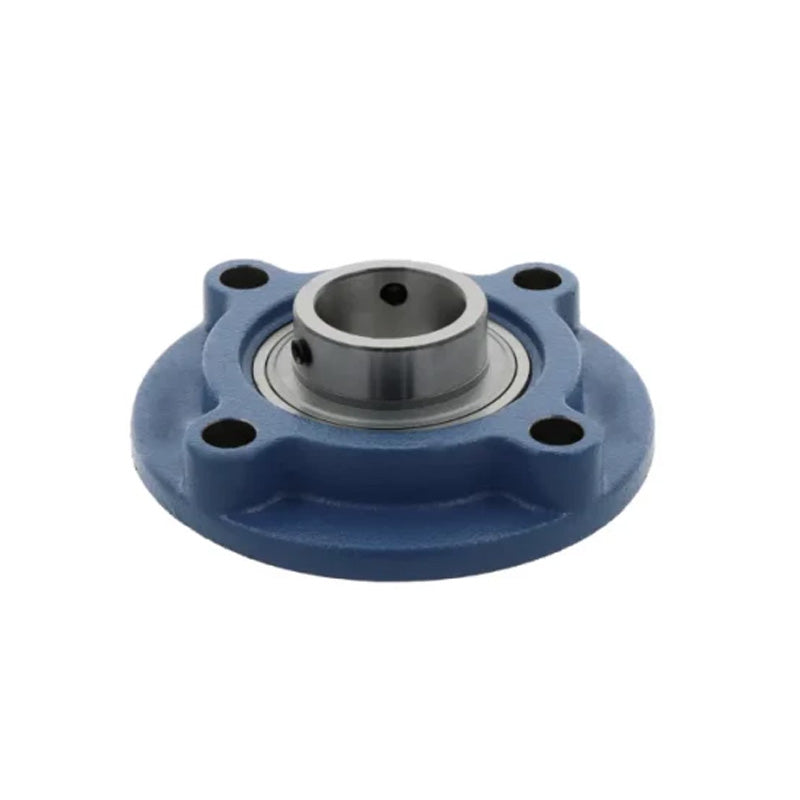

Challenge / FK UCFC218 Metric Cast Iron Four Bolt Round Flanged Housing with 90mm Bore 265mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Challenge / FK UCFC218 Metric Cast Iron Four Bolt Round Flanged Housing with 90mm Bore 265mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Regular price
$884.57
ex VAT
Regular price
Sale price
$884.57
ex VAT
Equivalent to: UCFC.218
In stock
Price Break
10+
$787.27
19+
$743.04
29+
$734.19
39+
$725.35
49+
$716.50
74+
$707.66
99+
$663.43
199+
$654.58
249+
$645.74
499+
$636.89
999+
$619.20
Couldn't load pickup availability
Description
Description
UCFC Cast Iron 4 Bolt Round Housing: These normal-duty bearing units are fitted with a triple lip seal in a cast iron housing and includes a grease nipple to facilitate re-lubrication. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Equivalent: UCFC.218
- Brand / Quality:
- Challenge / FK - Good Quality
- Inside Diameter:
- 90mm
- Style:
- UCFC
- Pitch Circle Diameter:
- 220mm
Technical
Technical
| Shaft Diameter d | 90mm |
|---|---|
| a | 265mm |
| p | 220mm |
| e | 155.5mm |
| i | 22mm |
| g | 50mm |
| l | 68mm |
| s | 23 inch |
| j | 18mm |
| k | 20mm |
| f | 190mm |
| z | 78.3mm |
| Bi | 96mm |
| n | 39.7mm |
| Bolt Size | M20mm |
| Insert No | UC218 |
| Housing No | FC218 |
