SKU: UCFC.217.TS.CHAL

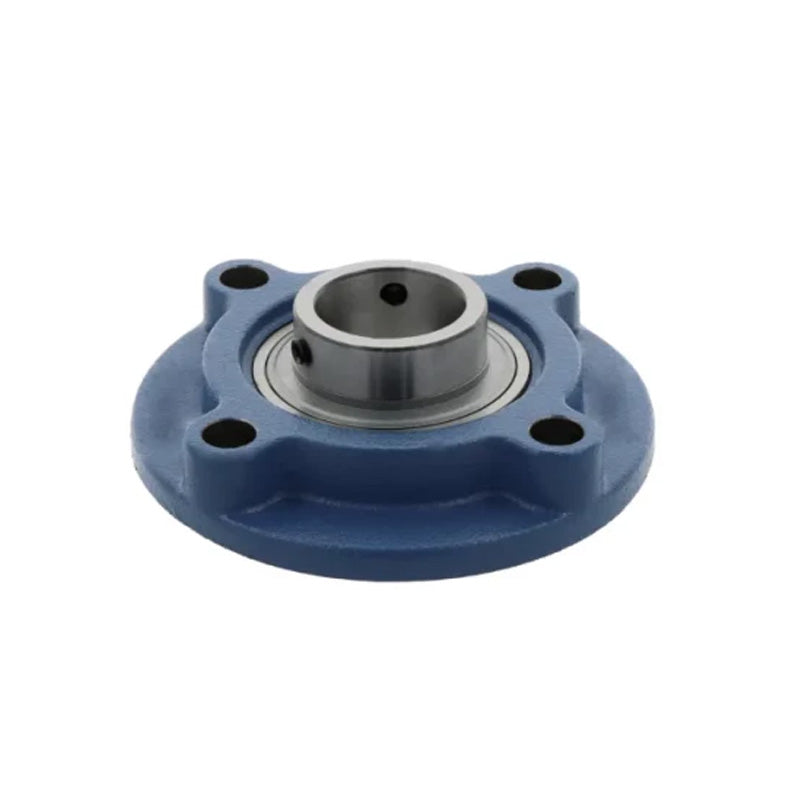

Challenge / FK UCFC217 Metric Cast Iron Four Bolt Round Flanged Housing with 85mm Bore 250mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Challenge / FK UCFC217 Metric Cast Iron Four Bolt Round Flanged Housing with 85mm Bore 250mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Regular price
$841.07
ex VAT
Regular price
Sale price
$841.07
ex VAT
Equivalent to: UCFC.217
In stock
Price Break
10+
$748.55
19+
$706.50
29+
$698.09
39+
$689.68
49+
$681.27
74+
$672.86
99+
$630.80
199+
$622.39
249+
$613.98
499+
$605.57
999+
$588.75
Couldn't load pickup availability
Description
Description
UCFC Cast Iron 4 Bolt Round Housing: These normal-duty bearing units are fitted with a triple lip seal in a cast iron housing and includes a grease nipple to facilitate re-lubrication. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Equivalent: UCFC.217
- Brand / Quality:
- Challenge / FK - Good Quality
- Inside Diameter:
- 85mm
- Style:
- UCFC
- Pitch Circle Diameter:
- 208mm
Technical
Technical
| Shaft Diameter d | 85mm |
|---|---|
| a | 250mm |
| p | 208mm |
| e | 147.1mm |
| i | 18mm |
| g | 45mm |
| l | 63mm |
| s | 23 inch |
| j | 18mm |
| k | 20mm |
| f | 180mm |
| z | 69.6mm |
| Bi | 85.7mm |
| n | 34.1mm |
| Bolt Size | M20mm |
| Insert No | UC217 |
| Housing No | FC217 |
