SKU: UCFC.209.TS.CHAL

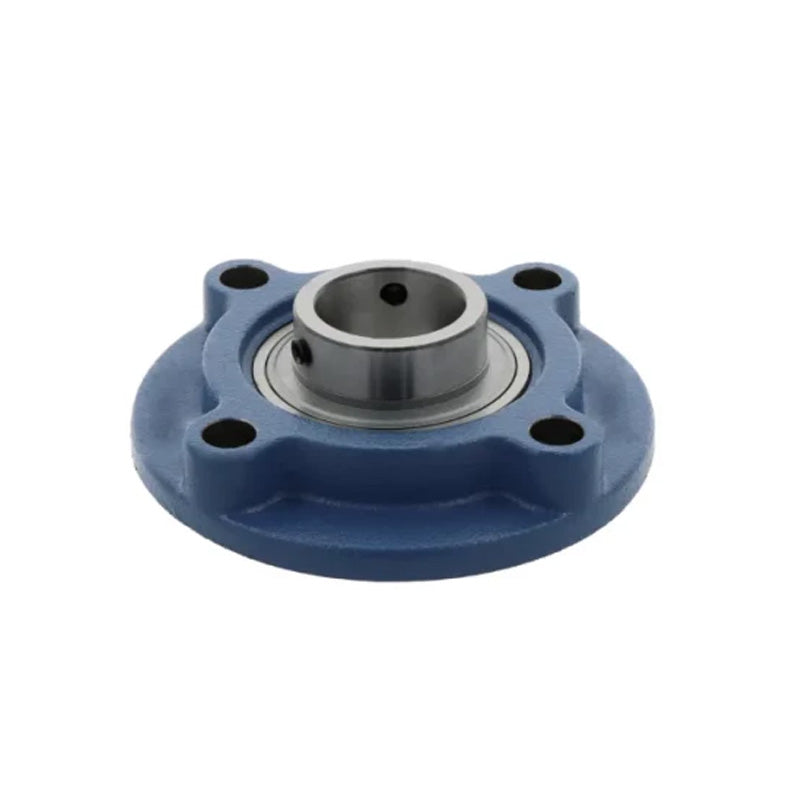

Challenge / FK UCFC209 Metric Cast Iron Four Bolt Round Flanged Housing with 45mm Bore 160mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Challenge / FK UCFC209 Metric Cast Iron Four Bolt Round Flanged Housing with 45mm Bore 160mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Regular price
$117.24
ex VAT
Regular price
Sale price
$117.24
ex VAT
Equivalent to: UCFC.209
In stock
Price Break
10+
$104.34
19+
$98.48
29+
$97.31
39+
$96.14
49+
$94.96
74+
$93.79
99+
$87.93
199+
$86.76
249+
$85.59
499+
$84.41
999+
$82.07
Couldn't load pickup availability
Description
Description
UCFC Cast Iron 4 Bolt Round Housing: These normal-duty bearing units are fitted with a triple lip seal in a cast iron housing and includes a grease nipple to facilitate re-lubrication. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Equivalent: UCFC.209
- Brand / Quality:
- Challenge / FK - Good Quality
- Inside Diameter:
- 45mm
- Style:
- UCFC
- Pitch Circle Diameter:
- 132mm
Technical
Technical
| Shaft Diameter d | 45mm |
|---|---|
| a | 160mm |
| p | 132mm |
| e | 93.3mm |
| i | 10mm |
| g | 26mm |
| l | 38mm |
| s | 16 inch |
| j | 12mm |
| k | 14mm |
| f | 105mm |
| z | 40.2mm |
| Bi | 49.2mm |
| n | 19mm |
| Bolt Size | M14mm |
| Insert No | UC209 |
| Housing No | FC209 |
