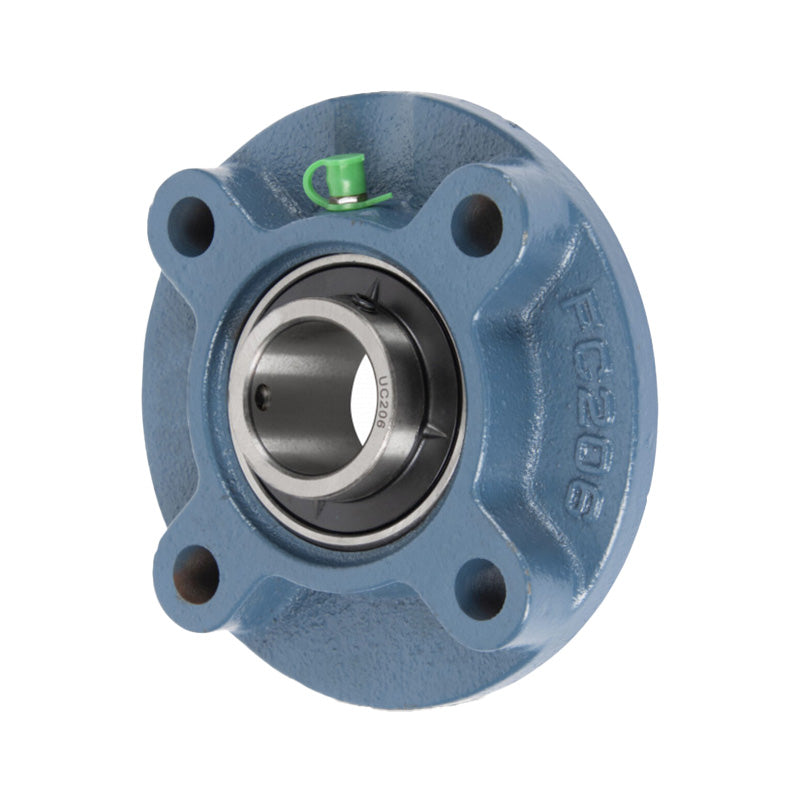

UCFC209-26 Imperial Four Bolt Cast Iron Round Flanged Housing with 1-5/8 inch Insert
UCFC209-26 Imperial Four Bolt Cast Iron Round Flanged Housing with 1-5/8 inch Insert
Regular price
$30.28
ex VAT
Regular price
Sale price
$30.28
ex VAT
In stock
Price Break
3+
$14.30
4+
$13.50
9+
$13.34
19+
$13.18
49+
$13.02
99+
$12.86
499+
$12.05
999+
$11.89
1999+
$11.73
2999+
$11.57
4999+
$11.25
Description
Description
|
UCFC Series 4 Bolt Round Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication, this style has the benefit of a shouldered back face to facilitate location of the housing prior to fastening in place. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 41.28mm = 1.625 (1-5/8) inch
- Style:
- UCFC
- Pitch Circle Diameter:
- 132.16mm = 132.16 (5-13/64) inch
Technical
Technical
| d | 1-5/8 inch |
|---|---|
| a | 6-5/16 inch |
| P | 5-13/64 inch |
| e | 3-43/64 inch |
| i | 25/64 inch |
| L | 1-1/2 inch |
| s | 5/8 inch |
| j | 15/32 inch |
| k | 25/64 inch |
| g | 1-1/32 inch |
| f | 4.1339 inch |
| z | 1-19/32 inch |
| Bi | 1.9370 inch |
| n | 0.7480 inch |
| Bolt Size | 1/2 inch |
| Weight | 2.8 kg |
| Dynamic load | 2560 kgf |
| Static load | 1810 kgf |
