SKU: UCFC.207

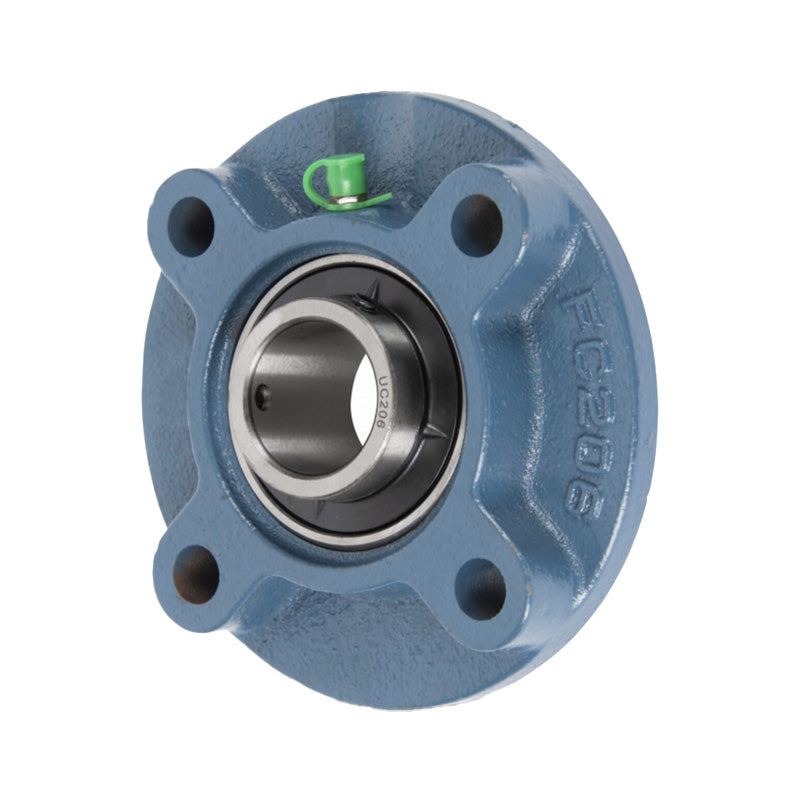

UCFC207 Metric Four Bolt Cast Iron Round Flanged Housing with 35mm Insert
UCFC207 Metric Four Bolt Cast Iron Round Flanged Housing with 35mm Insert
Regular price
$24.27
ex VAT
Regular price
Sale price
$24.27
ex VAT
In stock
Price Break
3+
$11.46
4+
$10.82
9+
$10.69
19+
$10.56
49+
$10.43
99+
$10.30
499+
$9.66
999+
$9.53
1999+
$9.40
2999+
$9.27
4999+
$9.02
Description
Description
|
UCFC Series 4 Bolt Round Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication, this style has the benefit of a shouldered back face to facilitate location of the housing prior to fastening in place. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 35mm
- Style:
- UCFC
- Pitch Circle Diameter:
- 110mm
Technical
Technical
| d | 35mm |
|---|---|
| a | 135mm |
| P | 110mm |
| e | 77.8mm |
| i | 11mm |
| L | 34mm |
| s | 14mm |
| j | 8mm |
| k | 9mm |
| g | 26mm |
| f | 90mm |
| z | 36.4mm |
| Bi | 42.9mm |
| n | 17.5mm |
| Bolt Size | M12 |
| Weight | 1.7 kg |
| Dynamic load | 2010 kgf |
| Static load | 1390 kgf |
