SKU: UCFB204-12

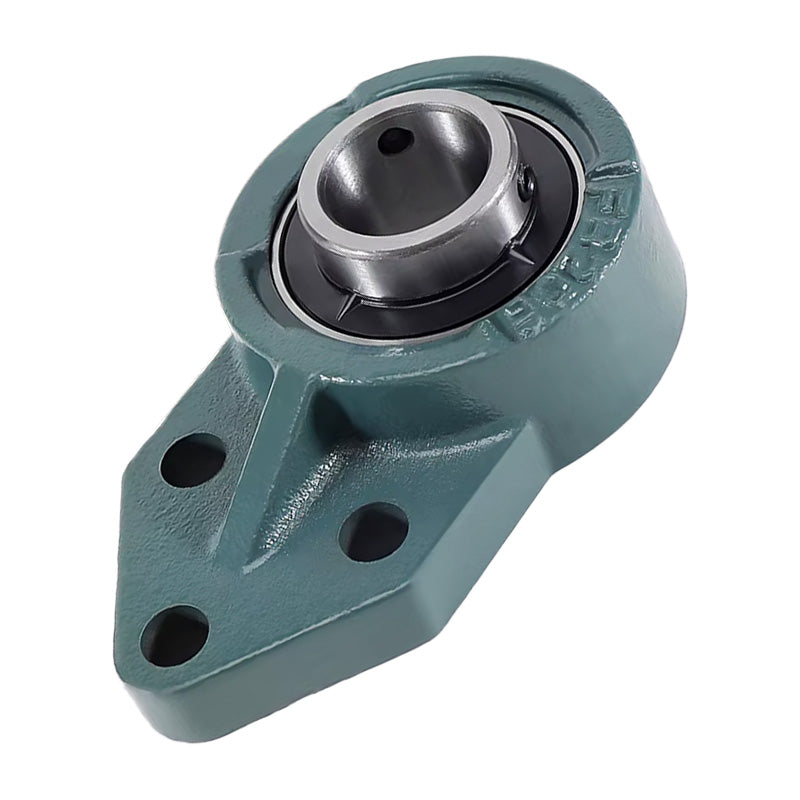

UCFB204-12 Imperial 3 Bolt Cast Iron Bracket Flange Bearing 3/4 inch Bore
UCFB204-12 Imperial 3 Bolt Cast Iron Bracket Flange Bearing 3/4 inch Bore
Regular price
$15.26
ex VAT
Regular price
Sale price
$15.26
ex VAT
In stock
Price Break
3+
$7.21
4+
$6.80
9+
$6.72
19+
$6.64
49+
$6.56
99+
$6.48
499+
$6.08
999+
$5.99
1999+
$5.91
2999+
$5.83
4999+
$5.67
Description
Description
UCFB200 Series Normal Duty 3 Bolt Bracket Flange Units: These bearing units are supplied with a fully sealed bearing insert fitted in the flange housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 19.05mm = 0.75 (3/4) inch
- Style:
- UCFB
- Bolt Hole Centres:
- 32.15mm = 1.266 (1-17/64) inch
Technical
Technical
| d | 3/4 inch |
|---|---|
| w | 4-11/32 inch |
| b | 2-7/16 inch |
| k | 2-1/16 inch |
| a | 2-1/16 inch |
| l | 1 inch |
| s | 25/64 inch |
| g | 1/2 inch |
| h | 1-21/32 inch |
| j | 1-1/16 inch |
| e | 1-17/64 inch |
| i | 19/32 inch |
| z | 1-5/16 inch |
| B | 1.2205 inch |
| n | 0.5 inch |
| Bolt size | 5/16 inch |
| Bearing no | UC204-12 |
| Housing no | FB204 |
| Weight | 0.546 kg |
