SKU: UCFA212-37
UCFA212-37 Imperial Cast Iron Adjustable Flange Unit with 2-5/16 inch Insert
UCFA212-37 Imperial Cast Iron Adjustable Flange Unit with 2-5/16 inch Insert
Regular price
$79.35
ex VAT
Regular price
Sale price
$79.35
ex VAT
In stock
Price Break
10+
$70.62
19+
$66.65
29+
$65.86
39+
$65.07
49+
$64.27
74+
$63.48
99+
$59.51
199+
$58.72
249+
$57.93
499+
$57.13
999+
$55.55
Couldn't load pickup availability
Description
Description

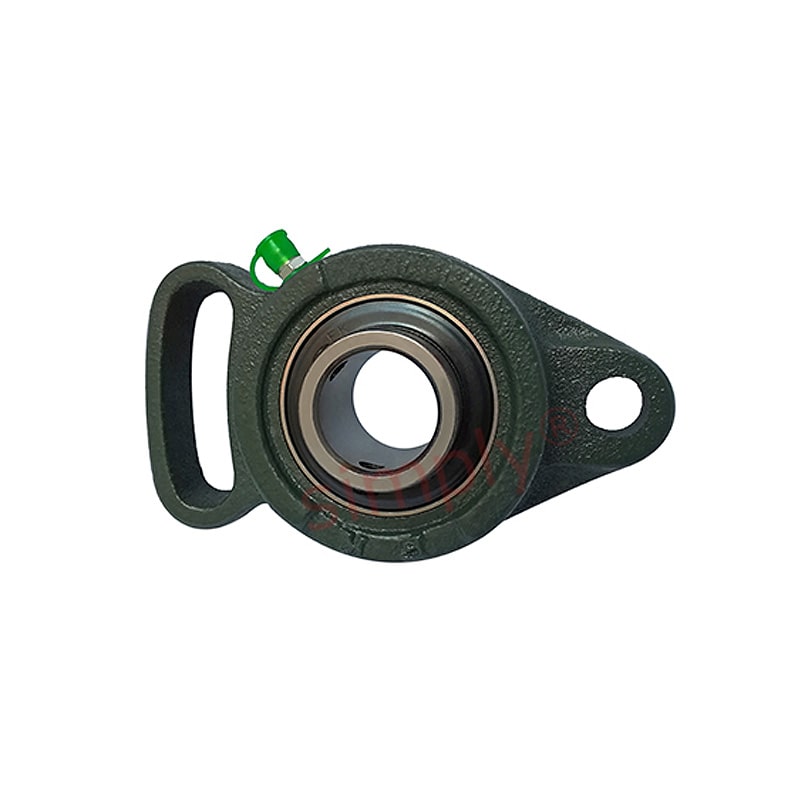

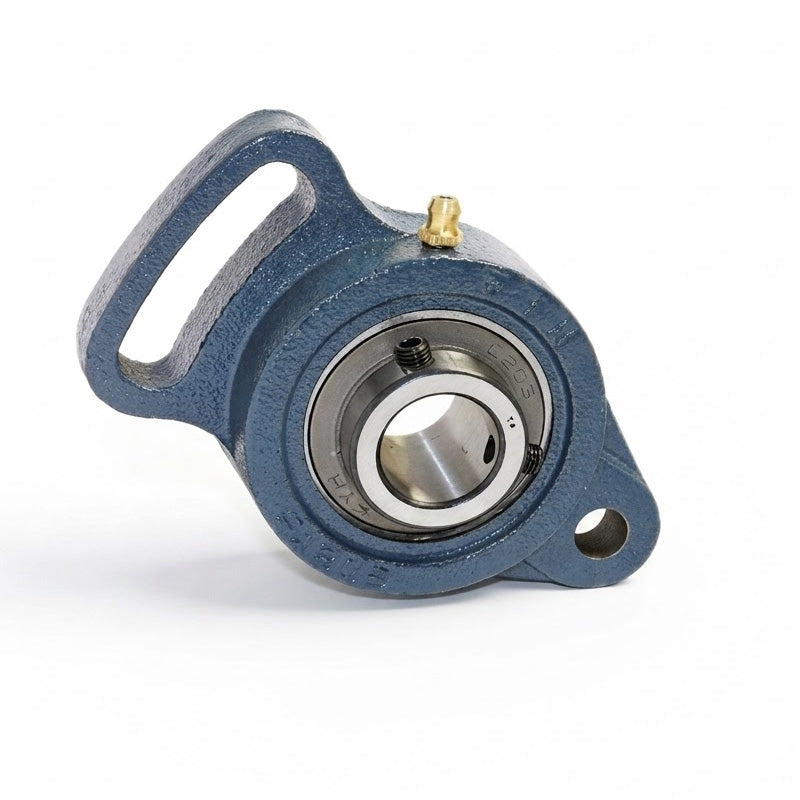

UCFA200 Series Normal Duty Adjustable Flange Units: These bearing units are supplied with a fully sealed bearing insert fitted in the adjustable flange housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 58.73mm = 2.312 (2-5/16) inch
- Style:
- UCFA
- Bolt Hole Centres:
- 202.01mm = 7.953 (7-61/64) inch
Technical
Technical
| d | 2-5/16 inch |
|---|---|
| a | 9-29/64 inch |
| e | 7-61/64 inch |
| i | 1-9/64 inch |
| g | 25/32 inch |
| l | 1-7/8 inch |
| s | 3/4 inch |
| b | 5-1/2 inch |
| z | 2-23/32 inch |
| f | 3-15/16 inch |
| c | 4-41/64 inch |
| B | 2.563 inch |
| n | 1 inch |
| Bolt size | 5/8 inch |
| Bearing no | UC212-37 |
| Housing no | FA212 |
| Weight | 3.81 kg |
