SKU: UCFA211-32

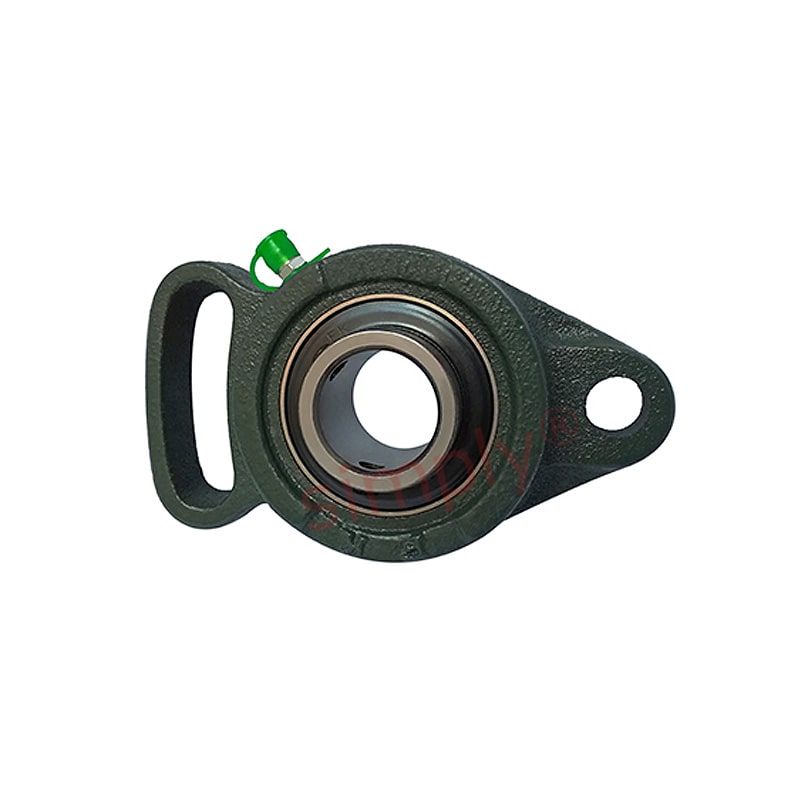

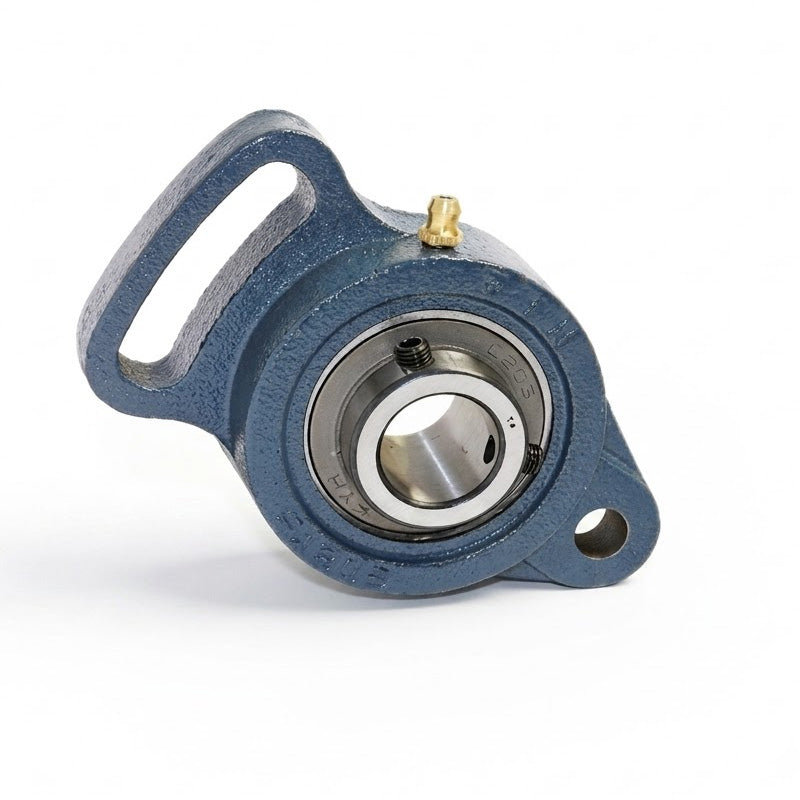

UCFA211-32 Imperial Cast Iron Adjustable Flange Unit with 2 inch Insert
UCFA211-32 Imperial Cast Iron Adjustable Flange Unit with 2 inch Insert
Regular price
$71.17
ex VAT
Regular price
Sale price
$71.17
ex VAT
In stock
Price Break
10+
$63.34
19+
$59.78
29+
$59.07
39+
$58.36
49+
$57.65
74+
$56.94
99+
$53.38
199+
$52.67
249+
$51.95
499+
$51.24
999+
$49.82
Couldn't load pickup availability
Description
Description
UCFA200 Series Normal Duty Adjustable Flange Units: These bearing units are supplied with a fully sealed bearing insert fitted in the adjustable flange housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50.8mm = 2 inch
- Style:
- UCFA
- Bolt Hole Centres:
- 182.2mm = 7.173 (7-11/64) inch
Technical
Technical
| d | 2 inch |
|---|---|
| a | 8-1/2 inch |
| e | 7-11/64 inch |
| i | 63/64 inch |
| g | 25/32 inch |
| l | 1-47/64 inch |
| s | 43/64 inch |
| b | 5-51/64 inch |
| z | 2-5/16 inch |
| f | 3-25/64 inch |
| c | 4-3/32 inch |
| B | 2.189 inch |
| n | 0.874 inch |
| Bolt size | 1/2 inch |
| Bearing no | UC211-32 |
| Housing no | FA211 |
| Weight | 3.26 kg |
