SKU: UCFA211

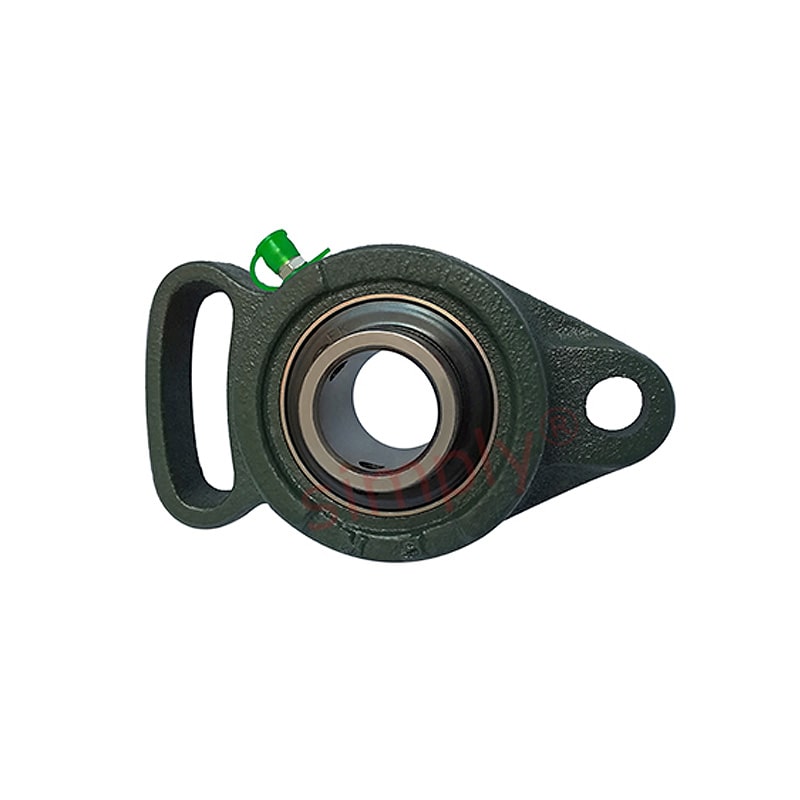

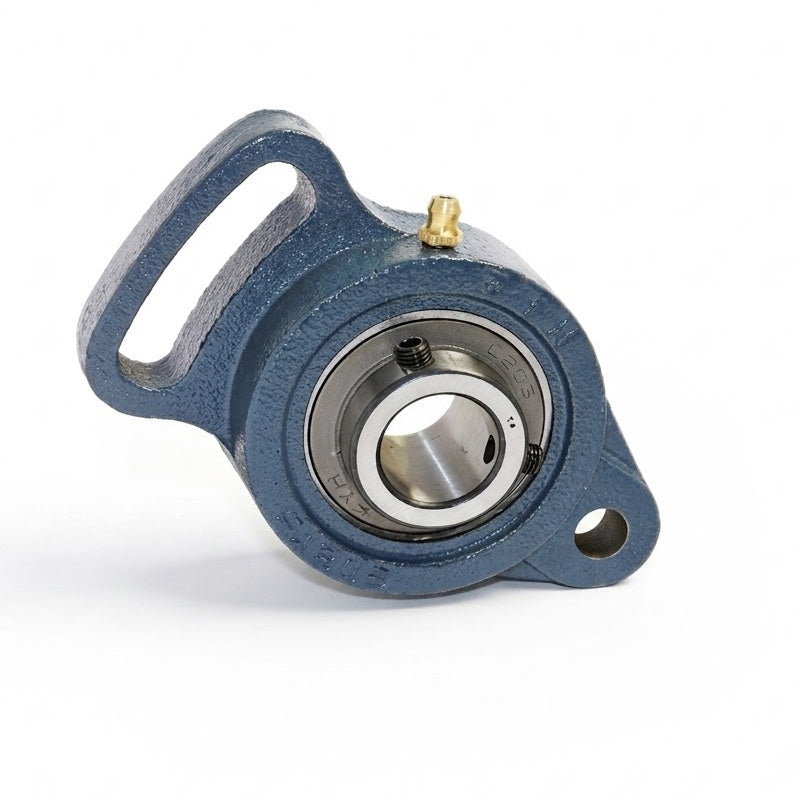

UCFA211 Metric Cast Iron Adjustable Flange Unit with 55mm Insert
UCFA211 Metric Cast Iron Adjustable Flange Unit with 55mm Insert
Regular price
$71.02
ex VAT
Regular price
Sale price
$71.02
ex VAT
In stock
Price Break
10+
$63.21
19+
$59.66
29+
$58.95
39+
$58.24
49+
$57.53
74+
$56.82
99+
$53.27
199+
$52.55
249+
$51.84
499+
$51.13
999+
$49.71
Couldn't load pickup availability
Description
Description
UCFA200 Series Normal Duty Adjustable Flange Units: These bearing units are supplied with a fully sealed bearing insert fitted in the adjustable flange housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 55mm
- Style:
- UCFA
- Bolt Hole Centres:
- 182mm
Technical
Technical
| d | 55mm |
|---|---|
| a | 216mm |
| e | 182mm |
| i | 25mm |
| g | 20mm |
| l | 44mm |
| s | 17mm |
| b | 133mm |
| z | 58.4mm |
| f | 86mm |
| c | 104mm |
| B | 55.6mm |
| n | 22.2mm |
| Bolt size | M14 |
| Bearing no | UC211 |
| Housing no | FA211 |
| Weight | 3.11 kg |
