SKU: UCFA209

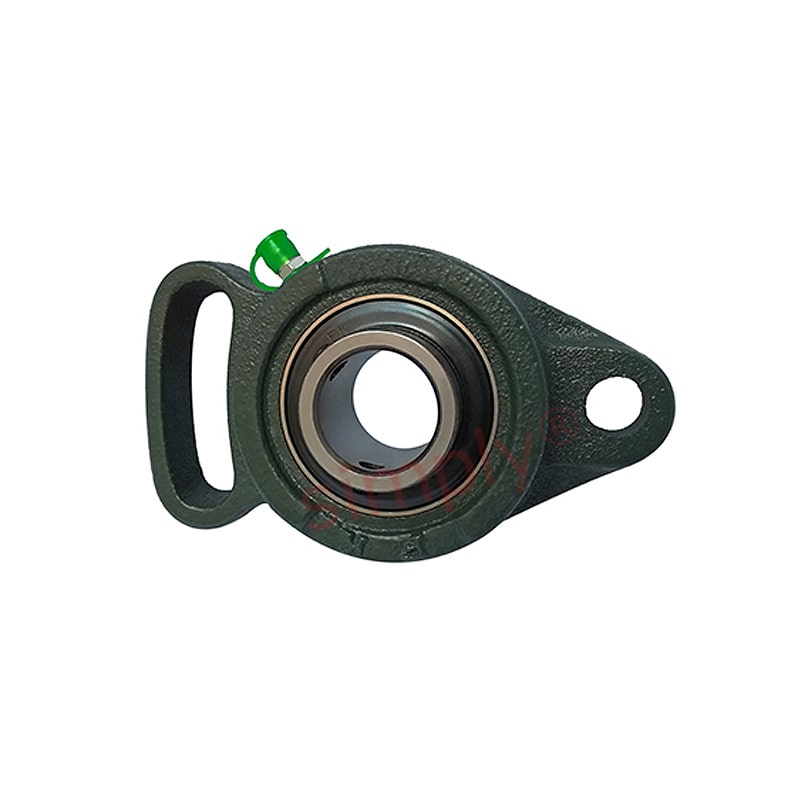

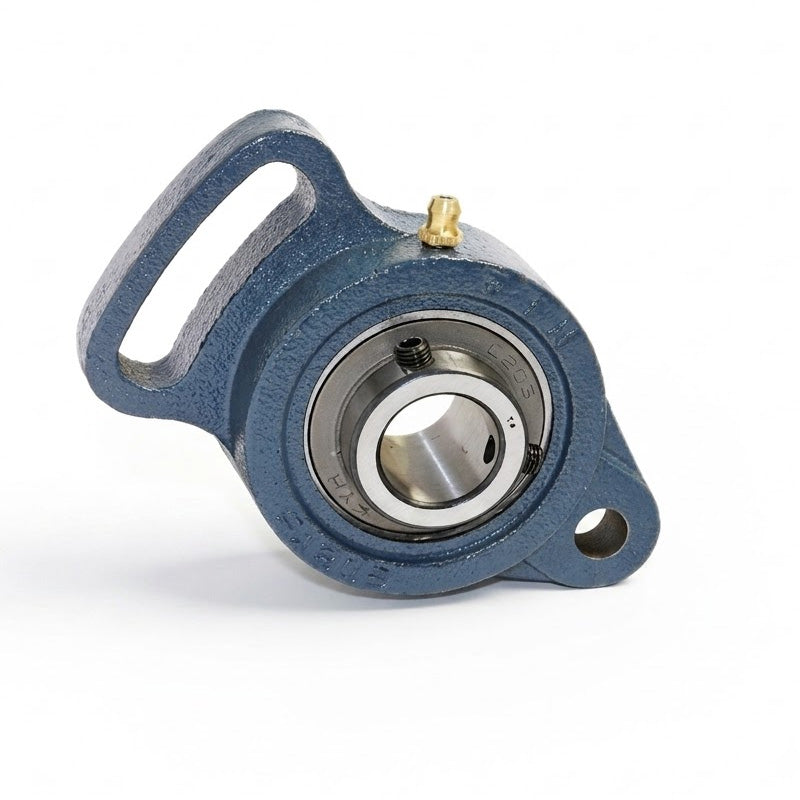

UCFA209 Metric Cast Iron Adjustable Flange Unit with 45mm Insert
UCFA209 Metric Cast Iron Adjustable Flange Unit with 45mm Insert
Regular price
$48.49
ex VAT
Regular price
Sale price
$48.49
ex VAT
In stock
Price Break
10+
$43.16
19+
$40.73
29+
$40.25
39+
$39.76
49+
$39.28
74+
$38.79
99+
$36.37
199+
$35.88
249+
$35.40
499+
$34.91
999+
$33.94
Couldn't load pickup availability
Description
Description
UCFA200 Series Normal Duty Adjustable Flange Units: These bearing units are supplied with a fully sealed bearing insert fitted in the adjustable flange housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 45mm
- Style:
- UCFA
- Bolt Hole Centres:
- 146mm
Technical
Technical
| d | 45mm |
|---|---|
| a | 179mm |
| e | 146mm |
| i | 22mm |
| g | 18mm |
| l | 40mm |
| s | 17mm |
| b | 111mm |
| z | 52.2mm |
| f | 72mm |
| c | 90mm |
| B | 49.2mm |
| n | 19mm |
| Bolt size | M14 |
| Bearing no | UC209 |
| Housing no | FA209 |
| Weight | 1.98 kg |
